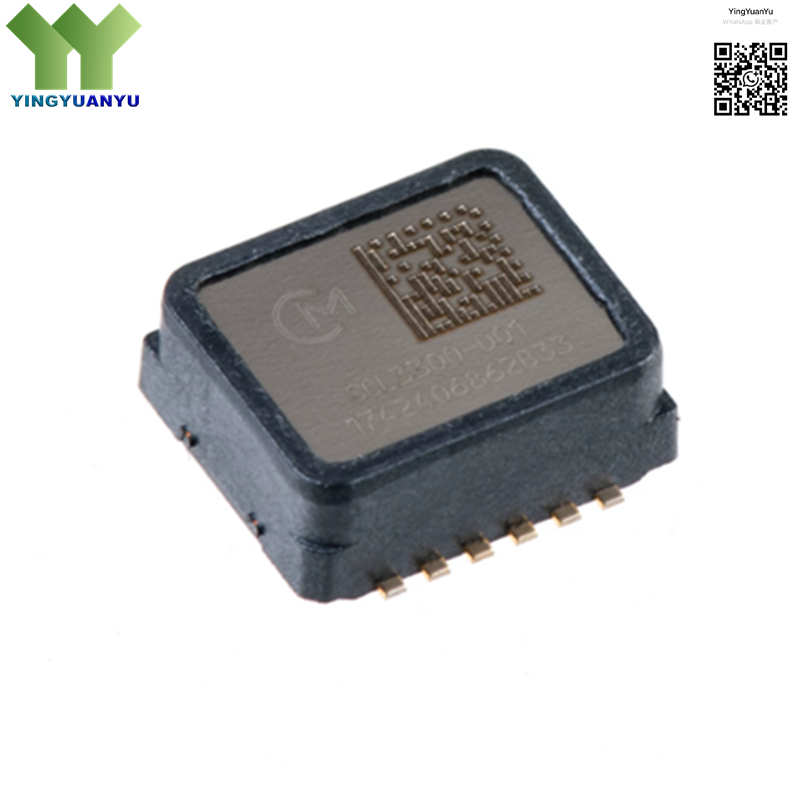

SCL3300-D01-10
SCL3300-D01-10
| Part Number | SCL3300-D01-10 |
| Manufacturer | Murata |
| Category | Sensors > Inclinometer & Accelerometer > High Precision Tilt Sensor |
| Description | 3-Axis MEMS Inclinometer, Digital SPI Output, High Stability Industrial Tilt Sensor,SMD-12P Package |
Product Overview
The SCL3300-D01-10 is a high-performance industrial-grade 3-axis MEMS inclinometer manufactured by Murata, designed for precision tilt and acceleration measurement under harsh working environments. Built with advanced single-crystal silicon MEMS technology, it features excellent long-term stability, low temperature drift and outstanding shock resistance. Integrated signal conditioning circuitry delivers calibrated digital data via standard SPI interface, eliminating complex external compensation circuits. With robust mechanical packaging and wide operating temperature range, this sensor is widely used for construction machinery leveling, industrial platform monitoring and structural inclination detection applications.
Key Specifications
| Brand | Murata |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | SMD-12P |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | SCL3300-D01-10 |
| Measurement Axis | X, Y, Z 3-Axis |
| Tilt Measurement Range | ±90° |
| Communication Interface | SPI |
| Supply Voltage | 3.0V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C |
Typical Applications
- Construction Machinery Level Control System
- Bridge & Building Structural Tilt Monitoring
- Industrial Automated Platform Level Detection
- Crane & Lifting Equipment Inclination Measurement
- Agricultural Machinery Attitude Control Modules
- Precision Surveying Instrument Tilt Compensation
- Railway Track Deformation Monitoring Equipment
- Automated Robotic Platform Attitude Sensing
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is SCL3300-D01-10 RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: What is the tilt measurement range of this MEMS tilt sensor?
A: The full-scale tilt measuring range is ±90° for X/Y/Z three axes.
Q3: What is the package and mounting type?
A: It adopts metal encapsulated SMD-12P package and surface mount type for PCB assembly.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
