SIR422DP-T1-GE3
SIR422DP-T1-GE3
| Part Number | SIR422DP-T1-GE3 |
| Manufacturer | Vishay Siliconix |
| Category | Semiconductors > Transistors > MOSFET |
| Description | N-Channel Power MOSFET, 40V,40A,6.6mΩ, Low Rds(on), High Efficiency Switching,PowerPAK-SO-8 Package |
Product Overview
The SIR422DP-T1-GE3 is a high-performance single N-channel power MOSFET developed by Vishay Siliconix. Utilizing advanced trench MOS technology, this device features ultra-low drain-source on-resistance, excellent switching speed and outstanding thermal dissipation capability. It minimizes conduction loss and improves overall system efficiency, making it ideal for high-frequency power conversion designs. Packaged in a compact surface-mount form factor, it saves valuable PCB space and suits automated mass production. With stable electrical performance and a wide operating temperature range, this MOSFET delivers long-term reliability for various power management and load switching applications.
Key Specifications
| Brand | Vishay |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | PowerPAK-SO-8 |
| Mounting Type | Surface Mount |

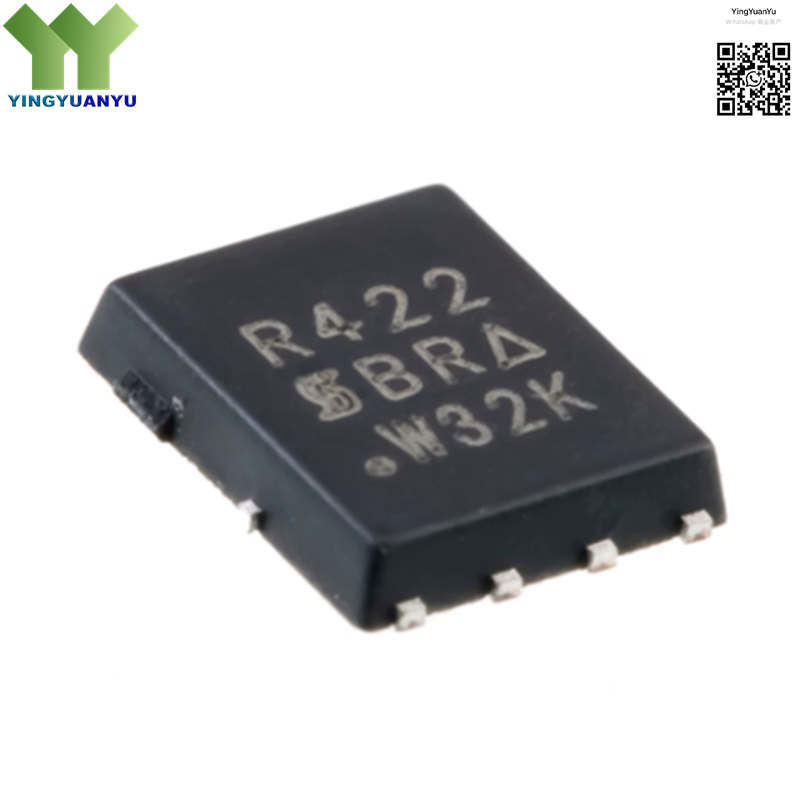

| Surface Marking / Silkscreen | R422 |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Id) | 40 A |
| Drain-Source On Resistance (Rds(on)) | 6.6 mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Operating Temperature | -55°C to 150°C |
Typical Applications
- DC-DC Converters
- Portable Electronic Devices
- Battery Management Systems
- Load Switching Circuits
- Power Supply Modules
- Industrial Control Equipment
- Consumer Electronics
- High Frequency Switching Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is this part RoHS compliant?
A: Yes, SIR422DP-T1-GE3 fully meets RoHS requirements.
Q2: Can I apply for product samples?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts PowerPAK-SO-8 package and surface mount type for PCB assembly.
Q4: What is the valid warranty period?
A: We provide 1 year standard warranty for this product.
