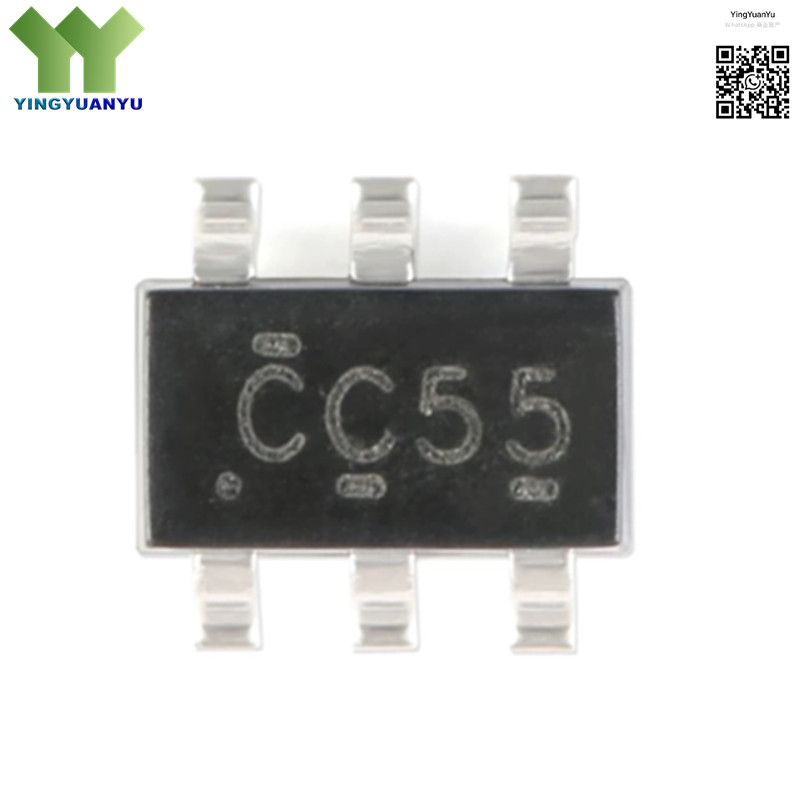

SN74LVC1G3157DBVR
SN74LVC1G3157DBVR
| Part Number | SN74LVC1G3157DBVR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Logic ICs; Single-Pole Double-Throw (SPDT) Analog Switches |
| Description | Single 1-Channel SPDT Analog Switch, Low-Voltage, High-Speed,1.65V~5.5V, SOT-23-6 Package |
Product Overview
The SN74LVC1G3157DBVR is a high-performance, low-voltage single-pole double-throw (SPDT) analog switch designed for portable electronics, embedded systems, and battery-powered devices. It supports wide low-voltage operation, high switching speed, low on-resistance, and low power consumption, making it ideal for analog and digital signal routing applications. The device features TTL-compatible control inputs, rail-to-rail signal handling, and excellent ESD protection for reliable operation in harsh environments. With its miniature SOT-23-6 surface-mount package, it enables high-density PCB designs and space-constrained applications.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Switch Type | SPDT (Single-Pole Double-Throw) |
| Voltage Range | 1.65V to 5.5V |
| Package Type | SOT-23-6 |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Analog & Digital Signal Routing
- Portable & Battery-Powered Electronics
- Wearable Devices & IoT Sensors
- Audio Signal Switching
- Embedded System I/O Interface
- Low-Voltage Logic & Signal Control
- High-Density Compact Circuit Designs
- Consumer Electronics & Mobile Devices
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
