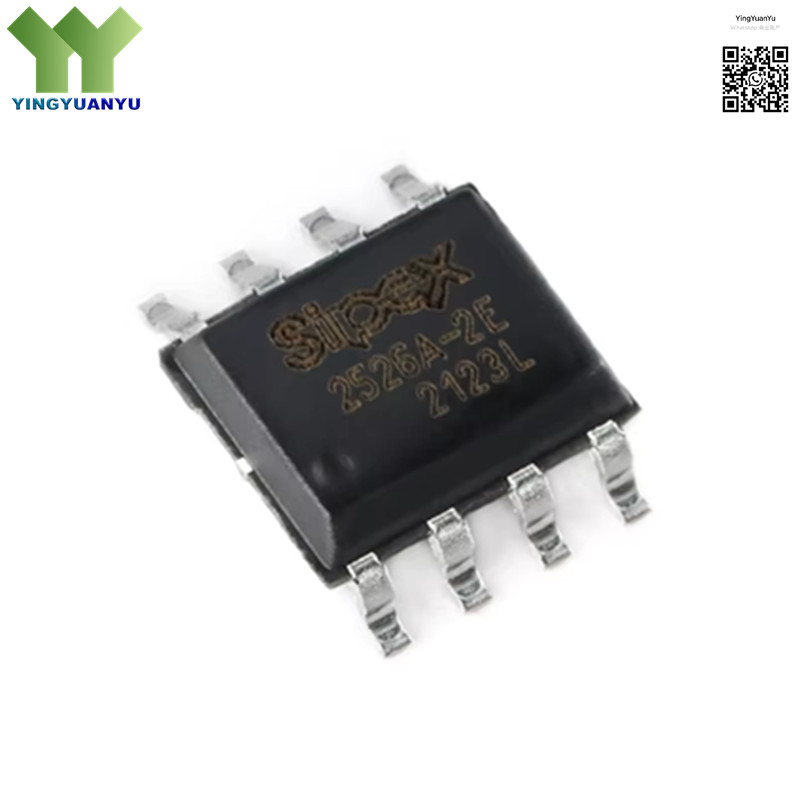

SP2526A-2EN-L/TR
Basic Information
| Part Number | SP2526A-2EN-L/TR |
| Manufacturer | MaxLinear (Exar Corporation) |
| Category | Integrated Circuits (ICs) > PMIC – Power Over Ethernet (PoE) Controllers |
| Description | IC POE CONTROLLER 8SOIC |
Product Overview
The SP2526A-2EN-L/TR is a highly integrated Power over Ethernet (PoE) interface controller designed for IEEE 802.3af compliant powered devices (PD). It integrates a precision power switch, undervoltage lockout, inrush current limiting, overcurrent protection, and thermal shutdown functions to provide a complete PoE interface solution. The device offers low on-resistance, high efficiency, and reliable power management for network-powered devices, housed in a compact 8-SOIC package ideal for space-constrained Ethernet-connected equipment.
Key Specifications
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Symbols, Footprints, 3D Models Available |
| Warranty | Standard Manufacturer Warranty |
| Brand | MaxLinear |
| PoE Standard | IEEE 802.3af |
| Application | Powered Device (PD) Controller |
| Voltage – Input | 36V ~ 57V |
| Power Output | Up to 12.95W |
| Protection Features | Overcurrent, Thermal Shutdown, Inrush Current Limiting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 8-SOIC |
| Mounting Type | Surface Mount |
Typical Applications
- IEEE 802.3af Powered Devices (PD)
- IP Phones & VoIP Phones
- IP Surveillance Cameras
- Wireless Access Points (WAP)
- Network Security Cameras
- IoT Ethernet Connected Devices
- Enterprise Network Equipment
- PoE Powered Embedded Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
