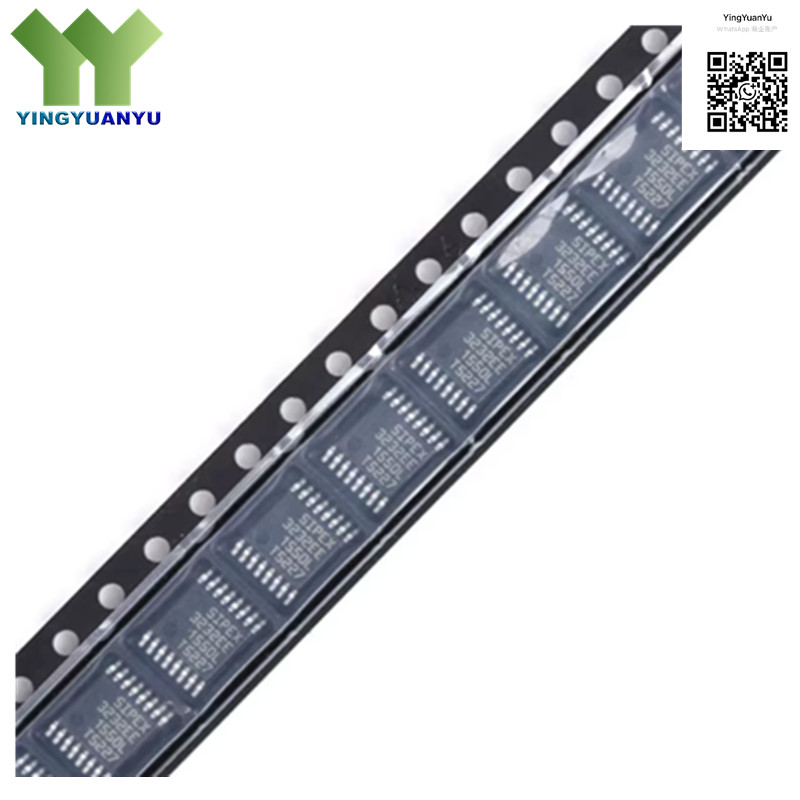

SP3232EEY-L/TR
SP3232EEY-L/TR
| Part Number | SP3232EEY-L/TR |
|---|---|
| Manufacturer | MaxLinear Inc. (Exar) |
| Category | Integrated Circuits (ICs) > Interface > RS-232 Drivers/Receivers |
| Description | 3V to 5.5V RS-232 Transceiver, 2 Drivers/2 Receivers, ESD Protection, 120kbps, -40 to 85°C, TSSOP-16 |
Product Overview
The SP3232EEY-L/TR is a high-performance, low-power RS-232 transceiver designed for 3V to 5.5V systems, featuring dual drivers and dual receivers for full-duplex serial communication. This device integrates high ESD protection (up to ±15kV) for all RS-232 I/O pins, ensuring robust reliability in industrial and harsh environments. It operates with a single power supply and includes an on-chip charge pump to generate RS-232 voltage levels without external capacitors, simplifying system design. Supporting data rates up to 120kbps and wide temperature operation, the SP3232EEY-L/TR is ideal for battery-powered, portable, and industrial serial communication applications.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (RoHS 2/3 Compliant, Lead-Free) |
| EDA/CAD Models | Available (Gerber, STEP, IDF, Symbol, Footprint) |
| Warranty | 3 Years Standard Warranty |
| Brand | MaxLinear (Exar) |
| Interface Type | RS-232, 2 Drivers / 2 Receivers |
| Supply Voltage | 3.0V to 5.5V |
| Data Rate | Up to 120kbps |
| ESD Protection | ±15kV for RS-232 I/O Pins |
| Operating Temperature | -40°C to +85°C |
| Package Type | TSSOP-16 |
Typical Applications
- Industrial Automation & Control Systems
- Embedded Serial Communication Modules
- Battery-Powered Portable Devices
- PC Peripherals & POS Terminals
- Test & Measurement Equipment
- Security & Access Control Systems
- Consumer Electronics with RS-232 Ports
- Low-Power IoT Serial Interfaces
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
