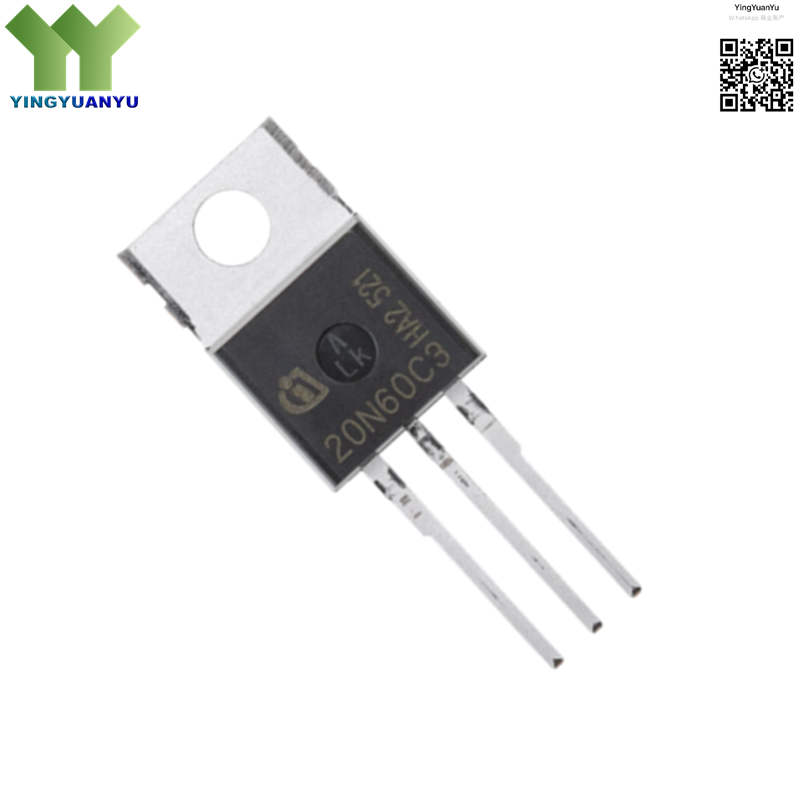

SPP20N60C3
SPP20N60C3
| Part Number | SPP20N60C3 |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Power MOSFETs; N-Channel CoolMOS™ MOSFET |
| Description | N-Channel CoolMOS™ C3 Power MOSFET, 600V, 20.7A,190 mΩ, High Voltage Switching Device, TO-220 Package |
Product Overview
The SPP20N60C3 is a high-voltage N-Channel CoolMOS™ C3 power MOSFET from Infineon Technologies, engineered for high-efficiency hard-switching and resonant-mode power conversion applications. It combines ultra-low on-resistance, fast switching performance, and excellent avalanche capability to minimize power losses and maximize energy efficiency. This RoHS-compliant device delivers superior thermal performance and reliability, ideal for switching applications in industrial power supplies, solar inverters, lighting, and server power systems.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220 Through-Hole Package |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | 20N60C3 Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 600 V |
| Continuous Drain Current (Id) | 20.7 A |
| On-State Resistance (Rds(on)) | 190 mΩ (Typical) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- Switch-Mode Power Supplies (SMPS)
- Industrial Power Supplies & Server Power
- Solar Inverters & Renewable Energy Systems
- LED Lighting & Electronic Ballasts
- Electric Vehicle (EV) Charging Systems
- Power Factor Correction (PFC) Circuits
- High-Voltage DC-DC Converters
- Welding Equipment & Industrial Controls
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
