TA947GG
TA947GG
| Part Number | TA947GG |
|---|---|
| Manufacturer | TST (Tai-Saw Technology ) |
| Category | RF Components > SAW Filters |
| Description | 947.5MHz RF SAW Band Pass Filter, SMD 3030-6P package for GSM wireless communication circuits. |
| Stock Status | In Stock |
| Origin | Original Taiwan Factory |
Product Overview

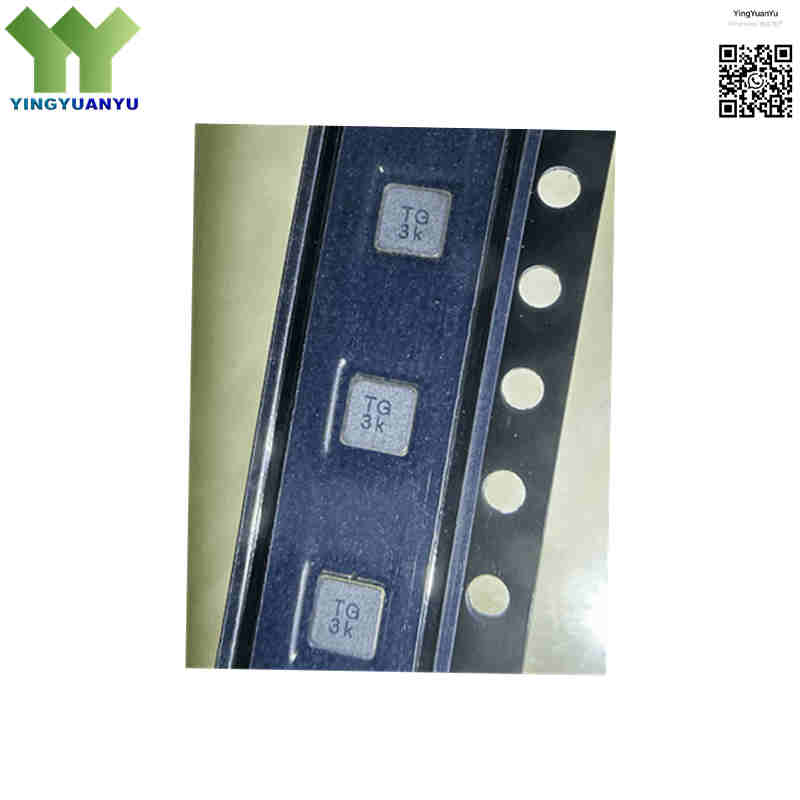

TA947GG is a surface acoustic wave (SAW) bandpass filter developed by TST Tai-Saw. Designed for 947.5MHz GSM communication frequency band, it features 25MHz pass bandwidth, low 3.5dB maximum insertion loss and standard 50Ohm system impedance. Adopting compact 3.0×3.0mm 6-pin SMD packaging, it suppresses out-of-band interference efficiently, ensures clean RF signal transmission for wireless modules, base station front-end and remote keyless entry equipment.
Core Advantages
Low Insertion Loss
Max 3.5dB insertion loss reduces RF signal attenuation, guarantee stable signal strength for wireless devices.
Standard 50Ω Impedance Matching
50Ohm input & output impedance matches most RF chips, no extra matching circuit required.
Compact Miniature SMD Package
3030 6-pin tiny footprint saves PCB layout space for portable wireless modules.
High Out-of-Band Rejection
Excellent suppression for interference signals outside 935MHz~960MHz pass band, anti-noise performance outstanding.
Wide Operating Temperature Range
Stable electrical performance from -40℃ to +85℃, fit industrial & outdoor communication equipment.
Key Specifications
| Brand | TST Tai-Saw Technology |
|---|---|
| RoHS Compliance | RoHS Lead-Free Green Packaging |
| EDA CAD Resources | 3030-6P footprint & schematic symbols available on request |
| Quality Warranty | 1-Year Standard Factory Warranty |
| Package / Case | SMD 3030-6P (3.0mm × 3.0mm × 1.4mm) |
| Mounting Type | SMT Surface Mount |
| Surface Marking / Silkscreen | TG Marking |
| Component Type | RF SAW Band Pass Filter |
| Center Frequency | 947.5 MHz |
| Pass Band Bandwidth | 25 MHz (935MHz ~ 960MHz) |
| Input / Output Impedance | 50Ω / 50Ω |
| Max Insertion Loss | 3.5 dB |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -55℃ ~ +125℃ |
| Max RF Input Power | +10dBm Continuous Input Power |
| Application Band | GSM Downlink Frequency Band |
| Moisture Sensitivity Level | MSL Level 1 |
| Stopband Rejection | ≥25dB @ out-of-band interference frequency range |
| Termination Plating | Tin-Lead Free Matte Tin Plating |
| Dimension Tolerance | ±0.1mm for length and width |
| Weight Per Unit | Approx 12mg |
| Reliability Test Standard | Compliant with JEDEC J-STD-020 |
Typical Applications
- GSM wireless communication modules & mobile radio equipment
- Wireless remote keyless entry (RKE) & vehicle anti-theft devices
- Small cell base station RF front-end circuits
- ISM band industrial wireless transmission equipment
- Portable data transceiver & IoT communication hardware
Order & Shipping Information
| Minimum Order Quantity | 1 Piece |
|---|---|
| Shipment Lead Time | Ship within 1-2 working days for stock parts |
| Global Delivery Time | 3-7 working days |
| Available Shipping Carriers | DHL, UPS, FedEx, EMS |
| Supported Payment Methods | T/T Bank Transfer, PayPal, Credit Card, Western Union |
Technical Support
Submit datasheet requests, engineering sample applications, stock inquiry and bulk price quotation via the quick inquiry form. All messages will be replied within 24 hours.
Frequently Asked Questions
Q1: What frequency band is TA947GG SAW filter suitable for?
A: It targets 947.5MHz center frequency with 25MHz bandwidth, designed for GSM downlink communication circuits.
Q2: What is the insertion loss of TA947GG?
A: Maximum insertion loss is only 3.5dB, which minimizes RF signal attenuation during transmission.
Q3: Is the input and output impedance of this filter 50 Ohm?
A: Yes, both input and output ports adopt standard 50Ω impedance, compatible with most RF transceivers.
Q4: What PCB layout tips for SMD 3030 SAW filter?
A: Keep 50Ω impedance continuous microstrip lines; ground copper under component for shielding; avoid high-power circuits adjacent to filter.
Q5: Does TA947GG meet RoHS lead-free environmental standards?
A: Fully RoHS compliant, all internal materials and solder terminals are lead-free for global electronic export.
Q6: What is the working temperature range of TA947GG?
A: Normal operating temperature range is -40℃ to +85℃, stable for industrial outdoor wireless devices.
Q7: Can I get free engineering samples of TA947GG for prototype testing?
A: Small free samples are available for R&D verification, submit sample demand via the inquiry form to apply.
Q8: What does SMD 3030-6P package mean?
A: 3030 refers to component size 3.0mm × 3.0mm; 6P stands for 6 surface mount contact pins.
Q9: What is the maximum RF signal power this filter can bear?
A: Continuous maximum input RF power is +10dBm, do not exceed the power rating for long-term use.
Q10: What manufacturer produces TA947GG?
A: Original manufacturer is TST Tai-Saw Technology (Taiwan Jia-Shuo Technology), a professional RF frequency component factory.
