TCD2564DG
TCD2564DG(Z,2C)
| Part Number | TCD2564DG |
|---|---|
| Manufacturer | Toshiba Electronic Devices & Storage Corporation |
| Category | Sensors, Transducers > Image Sensors, Camera / CCD Linear Image Sensors |
| Description | High-performance, high-sensitivity 5400-pixel trilinear color CCD linear image sensor with integrated sample-and-hold circuitry and low-noise operational output, optimized for high-resolution scanning platforms. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview

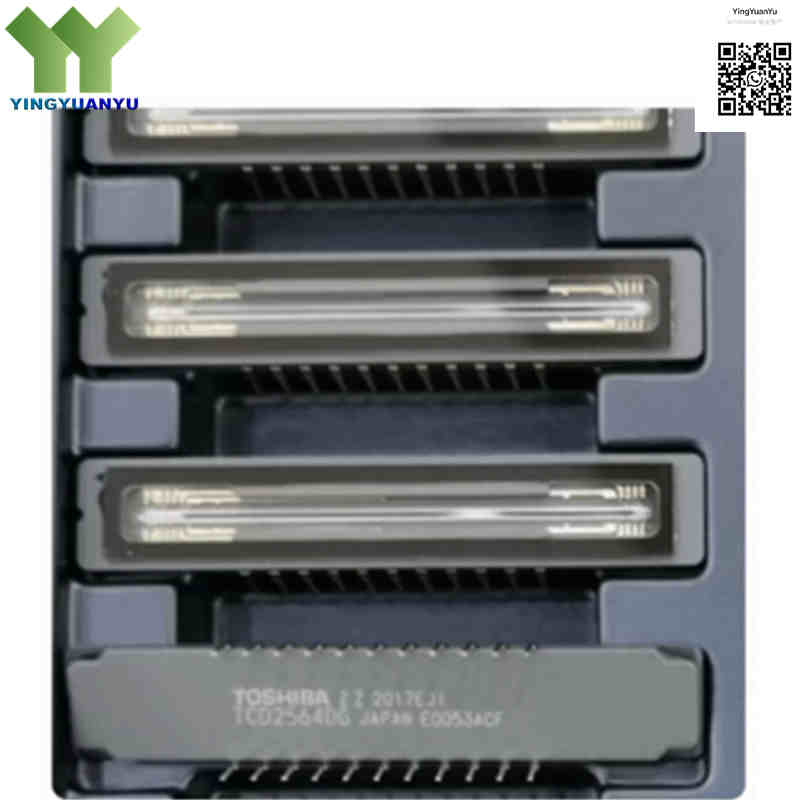

The Toshiba TCD2564DG(Z,2C) is a high-resolution trilinear color CCD linear image sensor with 5400 pixels per line. Designed for scanners, industrial inspection, and spectroscopy, it features integrated RGB filters for accurate color separation and a built-in sample-and-hold circuit to simplify ADC design. Housed in a lead-free 22-pin CERDIP package, it offers high sensitivity and low dark current for premium imaging applications.
Core Advantages
True-to-Life Trilinear Color Matrix
Features three parallel 5400-pixel sensor rows equipped with integrated RGB primary color filters, yielding brilliant chromatic fidelity, sharp resolution edge tracking, and exceptional spectral rendering accuracy.
On-Chip Sample-and-Hold Processing
Integrates dedicated sample-and-hold circuitry directly into the output amplification stage, which broadens output video signal lines, stabilizes peak data waveforms, and reduces system-level component counts.
Ultra-High Sensitivity with Low Noise
Utilizes proprietary Toshiba CCD architecture to achieve outstanding responsivity while simultaneously suppressing random clock noise, thermal variations, and undesirable dark current leakage under long exposure states.
Robust Eco-Friendly Ceramic Housing
Protected by a premium, hermetically sealed ceramic dual-in-line package utilizing lead-free formulation and premium optical transmission glass, guaranteeing dimensional stability across severe scanning stress operations.
Key Specifications
| Brand | Toshiba |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Compliant (Indicated by the “Z” Designator) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | CDIP-22 |
| Mounting Type | Through-Hole Technology (THT) / Specialized Socket Insertion |
| Surface Marking / Silkscreen | TCD2564DG Marking |
| Sensor Structural Type | Trilinear Color CCD Linear Image Sensor |
| Total Number of Pixels | 5400 Pixels × 3 Channels (RGB Array Layout) |
| Pixel Dimension Size | 4.7 μm × 4.7 μm square geometry format with 4.7 μm pitch alignment |
| Line Pitch Spacing | 37.6 μm distance spacing boundary between respective color array lines |
| Maximum Clock Data Rate | 35 MHz per channel configuration speed limit |
| Sensitivity Performance | High Responsivity under typical broad-spectrum halogen / LED scanning sources |
| Primary Supply Rail Duty | +10.0 V DC Main Register Bias / +5.0 V DC Clock Driver IO Rails |
| Internal Circuit Integration | Built-in Sample-and-Hold (S/H) Signal Conditioning Output Amplifiers |
| Operating Temperature Range | -10°C to +60°C (Standard Commercial / Scanning Apparatus Environmental Grade) |
Typical Applications
- Premium High-Resolution Color Desktop Document Scanners and Production-Grade Archiving Workstations
- Industrial Automated Optical Inspection (AOI) Platforms and Fabric/Textile Pattern Web Inspections
- High-Speed Banknote Sorting Systems, Currency Verification Modules, and Postal Sorting Machinery
- Analytical Instrumentation, Miniature Spectrophotometers, and Colorimetric Measurement Devices
- Precision Print Production Quality Monitors and Machine Vision Line Scan Imaging Arrays
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your current stock inventory of the TCD2564DG(Z,2C) fully authentic and factory-new?
A: Yes, we guarantee that all TCD2564DG(Z,2C) CCD line sensors in our inventory are 100% brand-new, factory-original Toshiba products, stored and shipped under strict environmental and ESD handling measures to prevent chip contamination.
Q2: What do the specific code parameters “(Z,2C)” represent inside this suffix profile?
A: The “Z” element indicates a lead-free green environmental component construction complying strictly with updated RoHS mandates. The “2C” designation relates to the specialized internal manufacturing iteration and package material optimization codes assigned by the Toshiba foundry.
Q3: How does the integrated sample-and-hold (S/H) circuit change the peripheral driver circuit requirements?
A: Traditional linear sensors provide very narrow analog data video pulses, forcing engineers to use highly complex, fast external operational amplifiers. The integrated S/H logic expands the output pulse duration profile, enabling developers to connect the sensor directly to standard high-resolution ADCs without encountering signal attenuation.
Q4: How can our engineering group acquire reference timing diagrams, mechanical optical center layout files, or bulk pricing structures?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
