TCUT1350X01
TCUT1350X01
| Part Number | TCUT1350X01 |
| Manufacturer | Vishay Semiconductors |
| Category | Optical Sensors; Transmissive Optical Sensors; Slotted Optical Switches |
| Description | Dual-Channel Transmissive Optical Sensor, 3mm Slot Width, Phototransistor Output, SMD-6P Package |
Product Overview

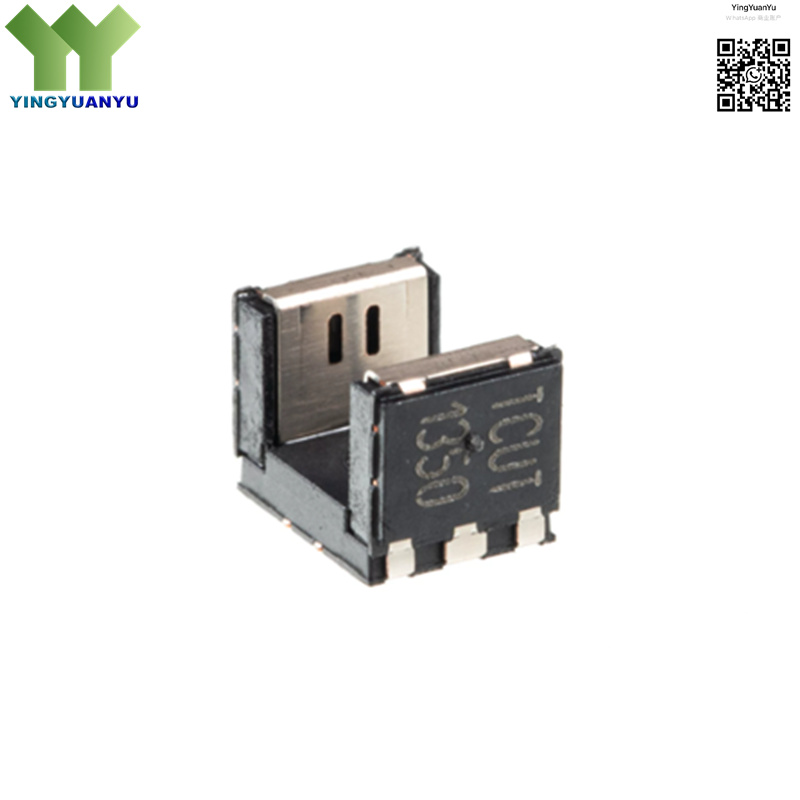

The TCUT1350X01 is a compact, surface-mount dual-channel transmissive optical sensor from Vishay Semiconductors. It features an infrared LED paired with two phototransistor detectors, mounted face-to-face with a 3mm slot width. This non-contact sensor is designed for reliable object detection, motion sensing, and position monitoring in industrial, automotive, and consumer electronic applications. The dual-channel design enhances detection accuracy, while the SMD-6P package enables high-density PCB integration. The device operates over a wide temperature range and offers stable performance in demanding environments.
Key Specifications
| Brand | Vishay Semiconductors |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SMD-6P,5.5x4mm (6-Pin Surface Mount) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | TCUT1350 Series Marking |
| Slot Width | 3mm |
| Output Type | Phototransistor (Dual-Channel) |
| Input Type | Infrared LED (GaAs) |
| Operating Temperature | -40°C to +125°C |
| Qualification | AEC-Q101 Qualified |
Typical Applications
- Automotive electronics (gear position sensing, door open/close detection)
- Industrial control equipment and automation systems
- Printers, copiers, and office automation devices
- Consumer electronics (disk drives, home appliances)
- Non-contact object detection and motion sensing
Order & Shipping Info
- Minimum Order Quantity (MOQ): 1 Piece
- Shipping Time: Shipped within 1-2 business days
- Delivery Time: 3-7 working days worldwide
- Shipping Methods: DHL, UPS, FedEx, EMS
- Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
