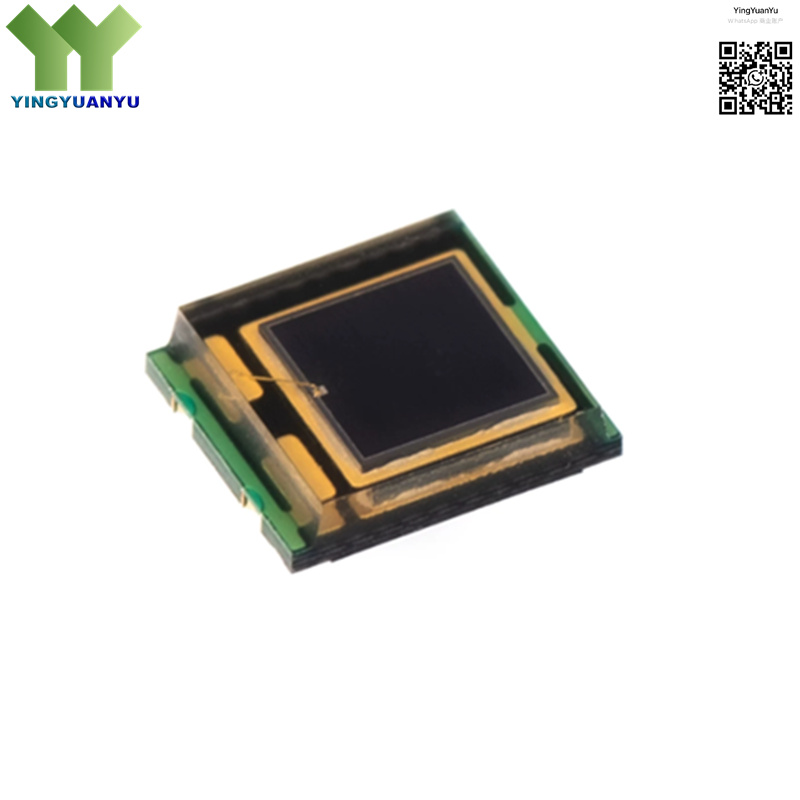

TEMD5080X01
TEMD5080X01
| Part Number | TEMD5080X01 |
|---|---|
| Manufacturer | Vishay Semiconductors |
| Category | Optical Sensors; Silicon PIN Photodiode |
| Description | High Sensitivity 940nm IR Photodiode, Surface Mount, Wide Angle,±65°, SMD,5×4.2mm SMD Package |
Product Overview
The TEMD5080X01 is a high-performance silicon PIN photodiode designed for reliable infrared light detection at 940nm wavelength. It features exceptional sensitivity, low dark current, fast response time, and a wide reception angle for optimal IR signal capture. The device offers stable optical performance over a broad temperature range, making it ideal for industrial, consumer, and automotive infrared sensing applications. Housed in a miniature surface-mount package, it supports high-density PCB design and automated SMT assembly.
| Key Specifications | |
|---|---|
| Brand | Vishay Semiconductors |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SMD,5×4.2mm Surface Mount Package |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | TEMD5080X01 |
| Peak Sensitivity Wavelength | 940 nm |
| Response Time | 15 ns (Typical) |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Infrared Remote Control Receivers
- Proximity and Distance Sensing
- IR Optical Data Communication
- Gesture Recognition Systems
- Industrial IR Detection Modules
- Automotive Interior Sensing
- Consumer Electronic IR Interfaces
- High-Speed Optical Sensors
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
