TMC249A-SA
TMC249A-SA
| Part Number | TMC249A-SA |
|---|---|
| Manufacturer | Trinamic (Analog Devices Inc.) |
| Category | Integrated Circuits (ICs) > Motor Drivers, Controllers |
| Description | High-current microstepping stepper motor driver controller with SPI interface and advanced diagnostics, utilizing external MOSFETs. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The TMC249A-SA is a high-performance, high-current stepper motor gate driver controller IC engineered by Trinamic (Analog Devices). Specifically architected to command external N-channel power MOSFET pairs, this device circumvents the current limitations of monolithic internal drivers, allowing it to easily manage heavy-duty motors requiring currents up to several Amperes. It utilizes a serial peripheral interface (SPI) for precise motion command transmission, system configuration, and exhaustive state diagnostics. Integrating Trinamic’s proprietary high-efficiency chopper technology and hardware-level protection circuitry, the ensures silent, smooth, and resonance-free microstepping transitions. Housed in a compact, thermally stable SOIC-28-300mil package, it serves as an industrial-grade foundation for scalable CNC automation, severe-duty motion nodes, and medical fluid positioning configurations.
Core Advantages
Scalable External Gate Drive Architecture
By driving external MOSFET power stages instead of using integrated transistors, the IC isolates thermal dissipation paths from the control logic and provides engineers with full freedom to scale output motor current limitations based strictly on external component selection.
Advanced SPI Integration & Configuration
A high-speed, multi-protocol SPI communication bus yields real-time software access to phase currents, microstep resolutions, and standby power settings, dramatically optimizing application adaptation speeds without changing board components.
StallGuard™ Hardware Load Detection
Features embedded sensorless load detection circuitry that tracks internal counter-electromotive force (Back-EMF). This enables automated stall detection routines and collision safety handling without relying on expensive physical optical limit switches or magnetic encoders.
Exhaustive Diagnostic Protection Suite
Equipped with native hardware-level diagnostics to instantly signal short circuits, open load states, over-temperature boundaries, and supply under-voltage faults via status flags, guaranteeing maximum platform longevity in unpredictable industrial environments.
Key Specifications
| Brand | Trinamic / Analog Devices |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | SOIC-28-300mil |
| Mounting Type | Surface Mount (SMD/SMT) |

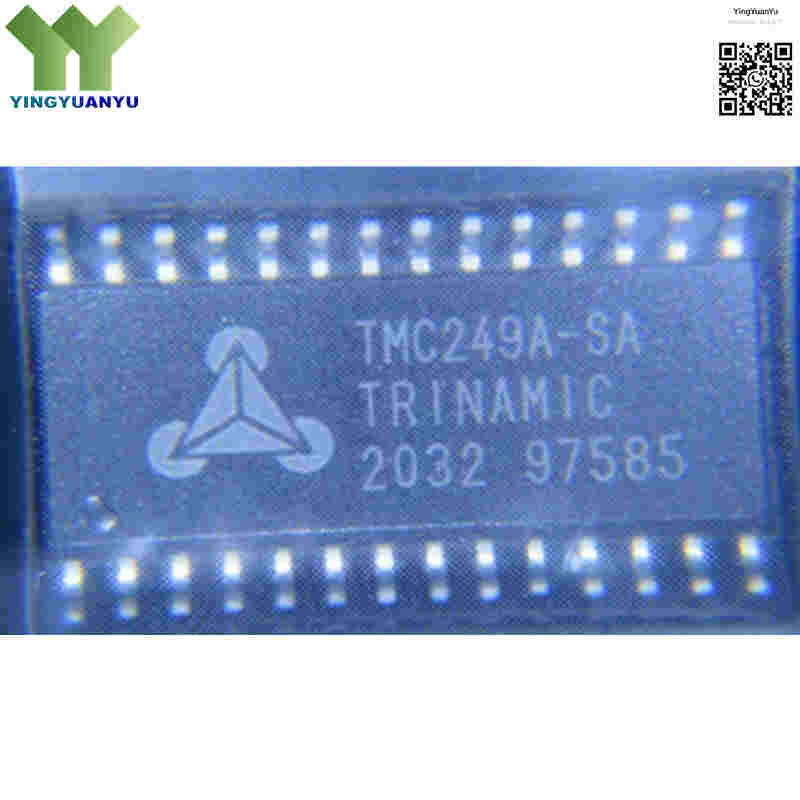

| Surface Marking / Silkscreen | TMC249A-SA Marking |
| Functional Output | Controller / Pre-driver for External MOSFETs |
| Motor Configuration | 2-Phase Bipolar Stepper Motors |
| Supported Microstep Resolutions | Up to 256 microsteps per full step |
| Interface Protocol | SPI (Serial Peripheral Interface) and Classical Analog / Digital inputs |
| Gate Drive Current Output | Optimized to control standard and logic-level N-channel MOSFET gates |
| Logic Supply Voltage (V_CC) | 3.3V to 5.5V Compatible |
| Operating Temperature Range | -40°C to +125°C (Industrial Grade Specification) |
Typical Applications
- Heavy Industrial CNC Milling, Laser Cutting, and Multi-Axis Routing Machines
- Automated Material Handling, Large Packaging lines, and Conveyor Shifters
- Textile Manufacturing Machinery and Large-Format Commercial Printing Equipment
- High-Reliability Medical Laboratory Pipetting, Centrifuges, and Diagnostic Pumps
- Stage Lighting Rigging, High-Payload Security Pan-Tilt-Zoom (PTZ) Enclosures
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your stock of TMC249A-SA components authentic and original?
A: Yes, we guarantee that all TMC249A-SA drivers supplied are 100% original, brand-new factory-direct stock from Trinamic / Analog Devices with fully traceable tracking metrics.
Q2: What is the primary benefit of the TMC249A-SA over an integrated motor driver chip?
A: The TMC249A-SA operates as a pre-driver controller that switches external MOSFET power transistors. This allows your final circuit configuration to support high current limits (e.g., 5A, 10A, or more) without exposing the main control IC to high thermal stress levels.
Q3: Does this controller support sensorless stall protection out of the box?
A: Yes, it features Trinamic’s proprietary StallGuard™ circuitry, which reads the Back-EMF variations of the motor windings under physical load to detect stall states instantly without requiring secondary encoders.
Q4: How can our design engineers obtain the recommended external MOSFET matching table and reference footprints?
A: Please complete our Quick Inquiry form detailing your target motor voltage and peak current metrics. Our application support desk will forward the official layout schematics and documentation guides within 24 hours.
