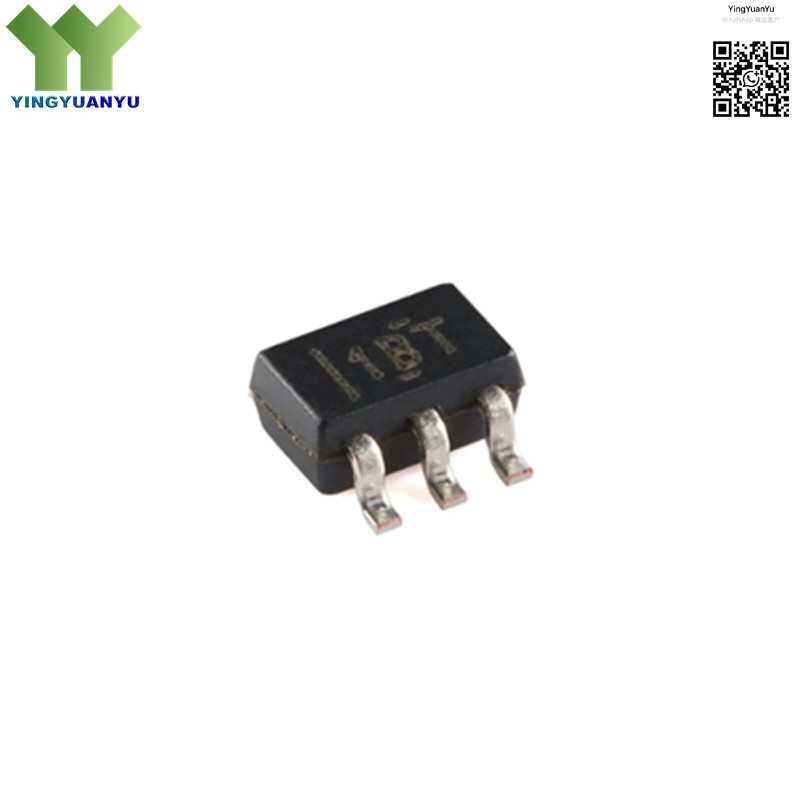

TMP236A4DCKR
TMP236A4DCKR
| Part Number | TMP236A4DCKR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Temperature Sensors; Analog Temperature Sensor |
| Description | Precision Analog Temperature Sensor, Voltage Output,1.8V ~ 5.5V, SC-70-5 Package, Surface Mount |
Product Overview
The TMP236A4DCKR is a high-precision, low-power analog temperature sensor featuring a linear voltage output proportional to temperature. It offers excellent accuracy, wide operating temperature range, low quiescent current, and simple analog interface for direct integration with microcontrollers and ADCs. The device provides stable and reliable temperature sensing without the need for digital communication protocols. Housed in an ultra-compact SC-70-5 surface-mount package, it is ideal for space-constrained portable, consumer, and industrial temperature monitoring applications.
| Key Specifications | |
|---|---|
| Brand | Texas Instruments |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SC-70-5 |
| Mounting Type | Surface Mount (SMD) |
| Temperature Range | -40°C to +125°C |
| Output Type | Analog Voltage Output |
| Supply Voltage | 1.8V ~ 5.5V |
| Accuracy | ±1.0°C (Typical) |
Typical Applications
- Portable & Battery-Powered Electronics
- Consumer Electronics & Home Appliances
- IoT Sensor Nodes & Wearable Devices
- Industrial Temperature Monitoring
- PCB & Component Thermal Protection
- HVAC & Environmental Control Systems
- Medical & Test Instrumentation
- Microcontroller Analog Sensing Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
