TPS565201DDCR
TPS565201DDCR
| Part Number | TPS565201DDCR |
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits > PMIC > DC-DC Step Down Buck Converter |
| Description | 5A Synchronous Step-Down DC-DC Converter, 4.5V~17V Input, Eco-Mode Operation,TSOT-23-6 Package |
Product Overview
The TPS565201DDCR is a high-efficiency synchronous buck converter from Texas Instruments integrating high-side and low-side power MOSFETs inside single chip. It adopts D-CAP3 control mode with built-in Eco-Mode for outstanding light-load efficiency, supporting wide input voltage range and fixed 0.765V reference feedback voltage. Complete protection functions including OVP, UVP, OTP and short-circuit protection are embedded to enhance system reliability. Minimal external components simplify PCB layout, widely used for industrial control, consumer electronics and IoT equipment power supply conversion.
Key Specifications
| Brand | Texas Instruments |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | TSOT-23-6 |
| Mounting Type | Surface Mount |

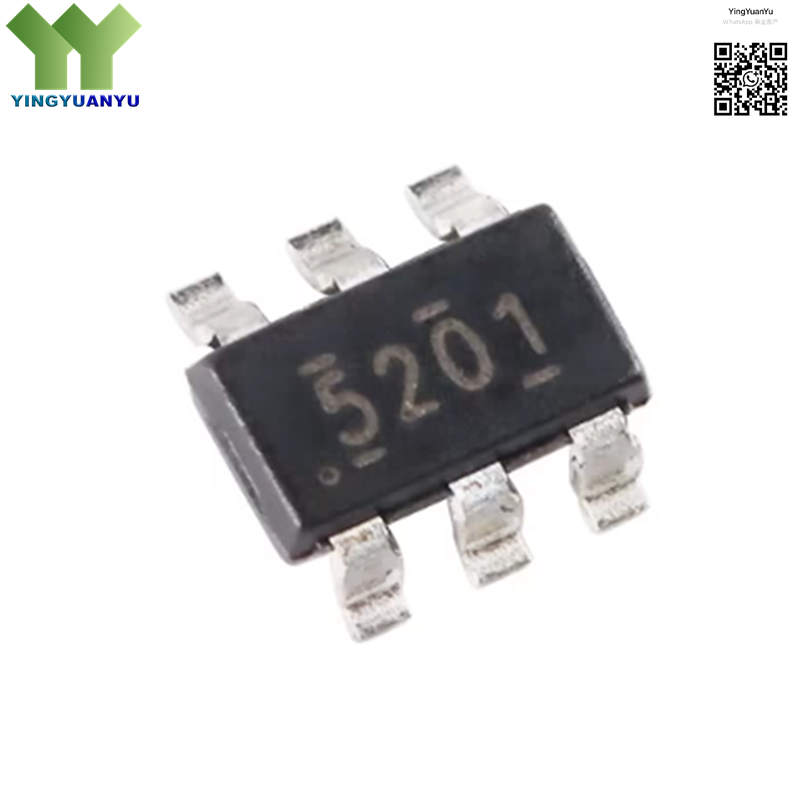

| Surface Marking / Silkscreen | 5201 Marking |
| Input Voltage Range | 4.5 V ~ 17 V |
| Output Current Max | 5 A Continuous |
| Feedback Reference Voltage | 0.765V |
| Switching Frequency | 500 kHz Typical |
| Operating Temperature | -40°C ~ 125°C |
Typical Applications
- Industrial Control Board Auxiliary Power Supply
- Smart Home & Consumer Electronics Power Modules
- IoT Wireless Communication Equipment Power
- Set-top Box & Router Step-Down Circuits
- Battery Powered Portable Instrument Power Supply
- Automotive Aftermarket Electronic Equipment
- FPGA & MCU Core Voltage Regulation
- LED Constant Voltage Driver Circuits
