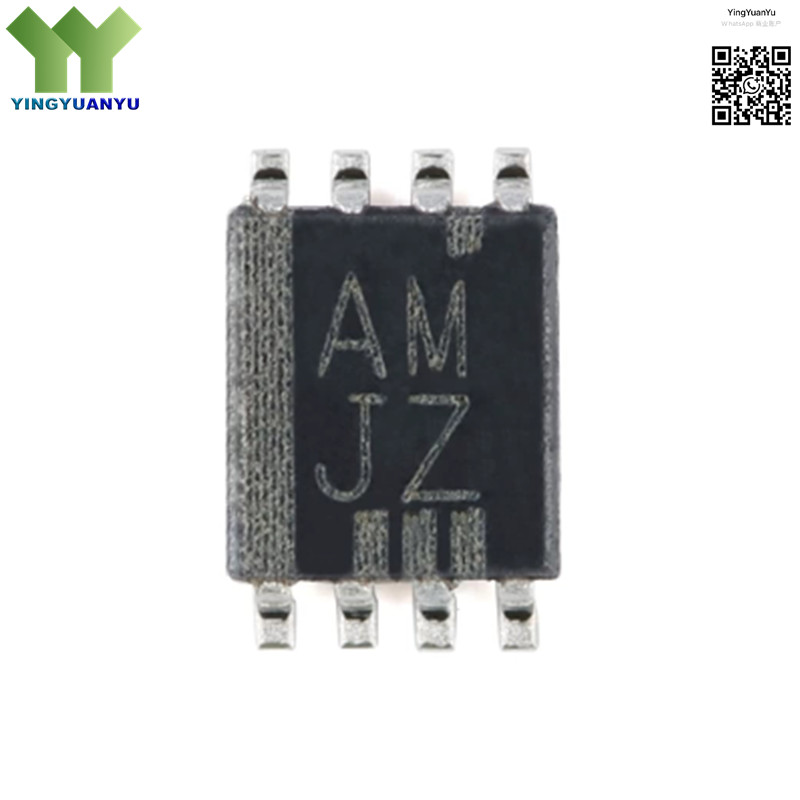

TS5A23166DCUR
TS5A23166DCUR
| Part Number | TS5A23166DCUR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Analog Switches / Multiplexers; Single SPDT Analog Switch |
| Description | Single Pole Double Throw (SPDT) Analog Switch, 1.65V-5.5V, Low On-Resistance, VSSOP-8 Package |
Product Overview
The TS5A23166DCUR is a high-performance, low-voltage single-pole double-throw (SPDT) analog switch designed for portable electronics, battery-powered devices, and signal routing applications. It supports a wide operating voltage range from 1.65V to 5.5V, features ultra-low on-resistance, fast switching speed, and low power consumption for efficient signal control. The device offers excellent signal integrity, ESD protection, and compatibility with both analog and digital signals, making it ideal for high-reliability portable and compact designs. With robust performance and industrial-grade stability, it ensures consistent operation in various environmental conditions. Housed in a tiny VSSOP-8 surface-mount package, it enables ultra-compact PCB integration and high-density system design.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Switch Type | Single SPDT (1-Channel) |
| Voltage Range | 1.65V – 5.5V |
| Package Type | VSSOP-8 |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Portable & Battery-Powered Electronics
- Wearable Devices & Smart Sensors
- Audio & Data Signal Routing & Switching
- IoT Nodes & Wireless Communication Modules
- Low-Voltage Portable Test Equipment
- Consumer Electronics & Mobile Accessories
- Analog Signal Path Control & Multiplexing
- Compact Low-Power Analog Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
