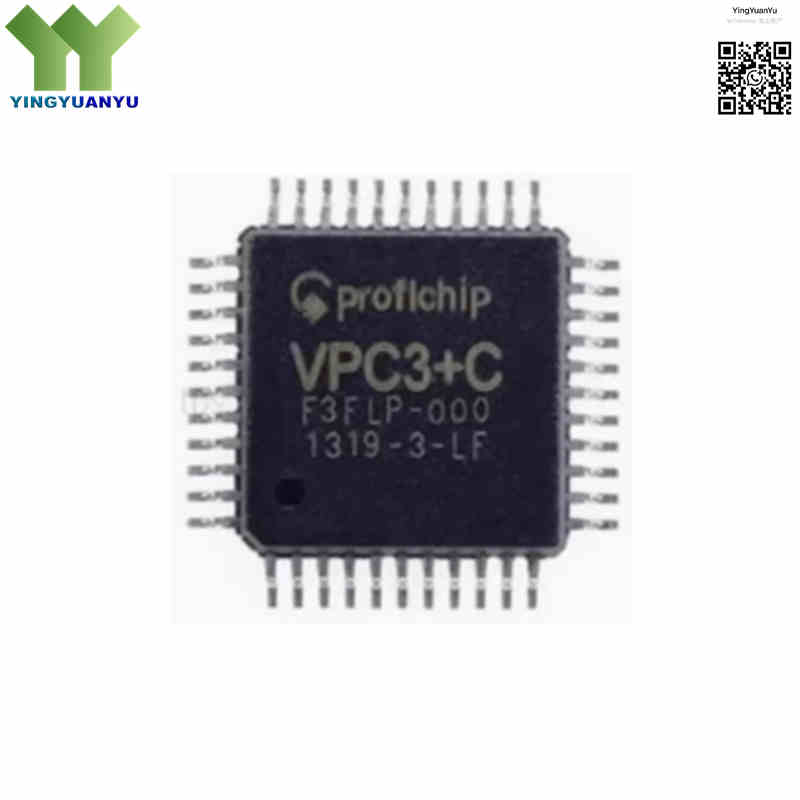

| Part Number | VPC3+C |
|---|---|
| Manufacturer | Profichip (A Yaskawa Company) |
| Category | Integrated Circuits (ICs) > Interface – Industrial Communication Controllers |
| Description | Highly integrated industrial PROFIBUS DP slave controller chip featuring full DP-V0/DP-V1/DP-V2 hardware protocol processor, 4 KB embedded dual-port RAM, flexible 8-bit parallel MCU interface, packed in 44-pin PQFP (10×10mm). |
| Stock Status | In Stock |
| Origin | Original Factory New & Unused |
Product Overview
VPC3+C is a PROFIBUS DP slave ASIC by Profichip (Yaskawa), pin and software compatible with Siemens SPC3 for direct PCB replacement. It fully hardware-implements DP-V0 cyclic data, DP-V1 acyclic parameter access and DP-V2 synchronous communication protocols. The integrated 4KB dual-port SRAM acts as low-latency data buffer between RS-485 transceivers and host MCUs. All frame encoding, decoding and error correction run on-chip up to 12Mbps, cutting real-time computation load of external microcontrollers. Packaged in compact 44-PQFP (10×10mm), it serves factory automation, servo drives and distributed IO equipment.
Core Advantages
Full Hardware PROFIBUS Protocol Processor
Independent hardware engine handles DP-V0 / DP-V1 / DP-V2 protocol stack, eliminating host MCU timing errors and extra firmware development workload.
4KB Shared Dual-Port Communication RAM
Dual-port SRAM allows simultaneous data access by host CPU and PROFIBUS communication core, no internal bus conflict during data transmission.
Configurable 8-bit Parallel MCU Interface
Supports multiplexed / non-multiplexed bus timing (Intel / Motorola mode), compatible with most mainstream 8-bit embedded microcontrollers.
Max 12Mbps PROFIBUS Baud Rate
Reaches the top transmission speed of PROFIBUS DP with auto baud rate detection, low signal jitter for high-precision automation control loops.
Key Specifications
| Brand Series | Profichip / Yaskawa Industrial PROFIBUS Interface Series |
|---|---|
| RoHS Status | RoHS Lead-Free Compliant, Certified Green Device |
| EDA Resources | Schematic symbols, PCB footprints, 3D STEP models available on request |
| Product Warranty | 1-Year Factory Quality Warranty |
| Package / Case | 44-PQFP (10mm × 10mm × 0.5mm) |
| Mounting Type | SMD Surface Mount, Compatible with standard lead-free reflow soldering |
| Surface Marking / Silkscreen | VPC3+C Marking |
| Supported Protocols | PROFIBUS DP-V0, DP-V1, DP-V2 Slave (DXB slave-slave communication, Isochronous Mode) |
| Max Communication Baudrate | 12 Mbps, auto baud rate identification function |
| On-Chip Buffer RAM | 4KB Dual-Port Static RAM for PROFIBUS data caching |
| Host Interface | 8-bit Parallel Bus (Intel / Motorola timing selectable) |
| Power Supply Options | Single 3.3V core OR single 5V power supply; all input pins 5V tolerant |
| Physical Layer Connection | Directly matched to standard RS-485 PROFIBUS transceivers |
| Operating Temperature | -40°C ~ +85°C (Industrial wide temperature grade) |
| Cross-Chip Compatibility | Pin, hardware & software fully compatible with Siemens SPC3 |
| External Clock Frequency | 48MHz dedicated external crystal oscillator |
| ESD Protection Rating | ±2kV Human Body Model (HBM) on all signal pins |
| Dual-Port RAM Access Latency | Typical access cycle time < 200ns |
| Typical Operating Current | 25mA @ 3.3V supply / 32mA @ 5V supply |
| Storage Temperature Range | -55°C ~ +125°C |
| Error Detection Mechanism | On-chip hardware CRC16 check for PROFIBUS frame bit error detection |
Typical Applications
- PLC remote IO modules, PROFIBUS bus couplers
- Industrial AC/DC servo drives, frequency inverters
- Process automation transmitters, flow & pressure measurement instruments
- Pneumatic valve terminals, intelligent field actuators
- Custom PROFIBUS DP protocol gateways and network analyzers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Dispatch Time | Ship within 1-2 working days after payment |
| Global Transit Time | 3-7 business days |
| Available Shipping Carriers | DHL, UPS, FedEx, EMS |
| Supported Payment Terms | T/T Bank Transfer, PayPal, Credit Card, Western Union |
Technical Support
Submit inquiries for datasheets, free samples, stock verification and bulk discount via the inquiry form. All messages will be replied within 24 working hours.
Frequently Asked Questions
Q1: Are VPC3+C parts 100% original new stock?
A: All VPC3+C are brand-new original chips from Profichip Yaskawa. Every batch passes strict incoming QC with complete lot traceability, shipped in factory ESD trays to prevent pin oxidation and damage.
Q2: What are the upgrades of VPC3+C compared to legacy VPC3?
A: VPC3+C is fully pin-compatible upgrade. It adds hardware DP-V1 parameter access and DP-V2 synchronous communication, with optimized low-power 3.3V core design.
Q3: Is an external crystal oscillator required for VPC3+C?
A: Yes, a dedicated 48MHz external crystal is mandatory. It ensures stable timing under 12Mbps high-speed PROFIBUS communication for internal baud rate generation.
Q4: How can I get driver codes, datasheets and bulk prices?
A: Fill in your project details and required quantity on the inquiry form. Our technical team will send official registers, driver templates and tiered bulk prices within 24 working hours.
Q5: Can I apply for free engineering samples of VPC3+C?
A: Yes, we support free small-batch engineering samples for project verification. Leave your project information and sample demand via the inquiry form to apply.
Q6: What is the lead time for mass order delivery?
A: In-stock items ship within 1-2 working days. For large bulk orders out of stock, the standard production lead time is 2-4 weeks.
Q7: What is the warranty period for VPC3+C chips?
A: All original chips carry a 1-year factory quality warranty. We support replacement for defective parts caused by original manufacturing flaws.
Q8: Can VPC3+C directly replace Siemens SPC3 without PCB modification?
A: Absolutely. VPC3+C maintains fully consistent pinout, hardware and software logic with Siemens SPC3, no PCB redesign or program adjustment needed.
