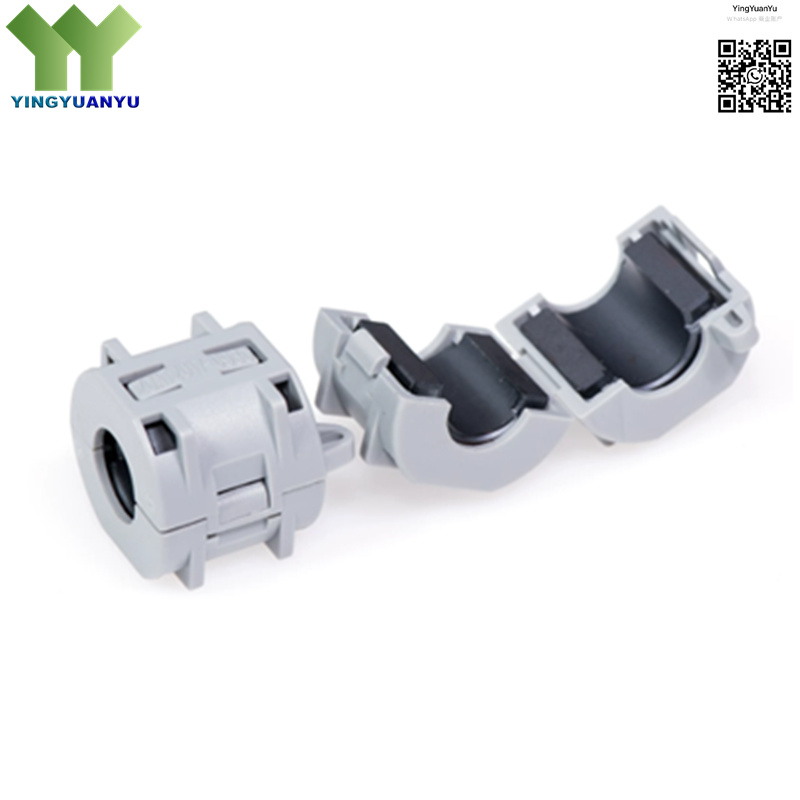

ZCAT2017-0930
ZCAT2017-0930
| Part Number | ZCAT2017-0930 |
|---|---|
| Manufacturer | TDK Corporation |
| Category | EMI / RFI Suppression; Ferrite Core |
| Description | Clip-on Ferrite Core, 9 mm Inner Diameter,50Ω,100MHz~500MHz,High Frequency Noise Suppression Filter |
Product Overview
The ZCAT2017-0930 is a high-performance clip-on ferrite core from TDK, specifically designed for effective electromagnetic interference (EMI) and radio frequency interference (RFI) suppression in power cables, signal wires, and data transmission lines. It features a convenient snap-on installation design, high magnetic permeability, and excellent high-frequency noise attenuation performance. The core effectively suppresses unwanted electromagnetic noise without affecting the transmitted signal, ensuring stable and reliable operation of electronic systems in industrial, consumer, and communication environments.
| Key Specifications | |
|---|---|
| Brand | TDK Corporation |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | Clip-on Ferrite Core 21*17*20mm |
| Mounting Type | Snap-On / Clamp-On (No Cable Cutting Required) |
| Surface Marking / Silkscreen | ZCAT2017-0930 |
| Inner Diameter | 9 mm |
| Material | Nickel-Zinc Ferrite |
| Operating Temperature | -25°C to +85°C |
Typical Applications
- Power Cable EMI Suppression
- Audio / Video Signal Line Noise Filtering
- USB and Data Communication Cables
- Industrial Control Equipment Wiring
- Consumer Electronic Devices
- Automotive Wire Harness Noise Reduction
- Medical Equipment Signal Integrity
- High-Frequency Electromagnetic Interference Suppression
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
