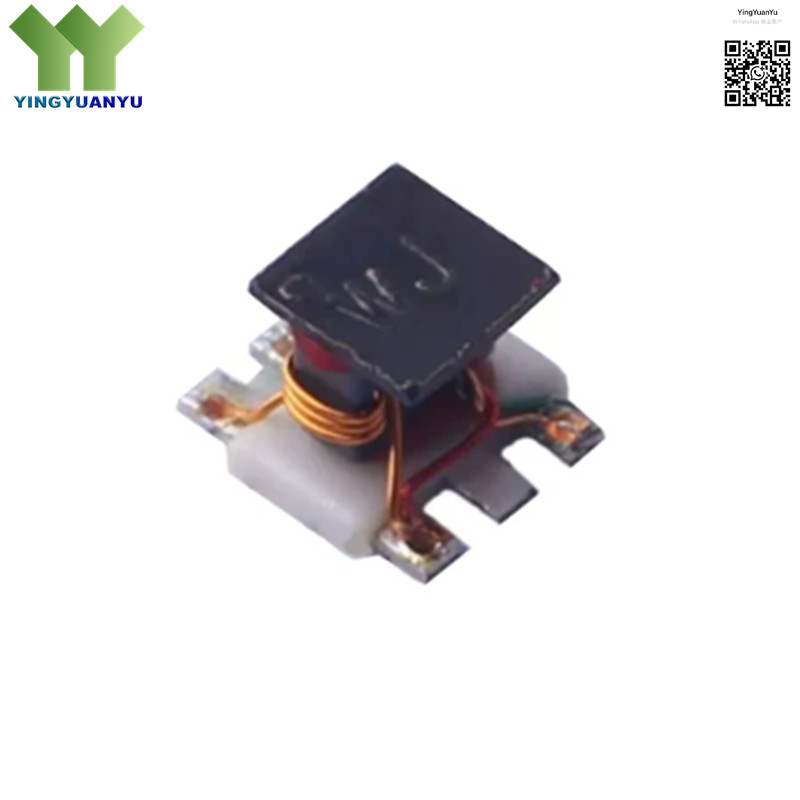

TCM2-63WX+
TCM2-63WX+
| Part Number | TCM2-63WX+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Transformers; Surface Mount RF Transformers |
| Description | 2:1 Impedance RF Transformer, 300-6000 MHz, 50Ω/100Ω, SMD-6P Package, RoHS Compliant |
Product Overview
The TCM2-63WX+ is a high-performance broadband surface-mount RF transformer designed for RF, microwave, wireless communication, and test equipment applications. It operates over an ultra-wide frequency range from 300 MHz to 6000 MHz with stable 2:1 impedance conversion, low insertion loss, high return loss, and excellent amplitude/phase balance. Built with advanced ceramic core technology and compact SMD-6P packaging, this transformer delivers reliable performance, high isolation, and consistent electrical characteristics across temperature variations. It is ideal for impedance matching, signal balancing, differential drive, and RF interface circuits in high-density communication systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Frequency Range | 300 – 6000 MHz |
| Impedance Ratio | 2:1 (50Ω / 100Ω) |
| Package Type | SMD-6P |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Broadband RF Impedance Matching Circuits
- Differential/Single-Ended Signal Conversion
- Wireless Communication Transceivers
- RF Power Amplifier Interface Circuits
- Microwave Test & Measurement Equipment
- 5G/4G Wireless Infrastructure
- High-Speed RF Data Links
- High-Density RF & Microwave Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
