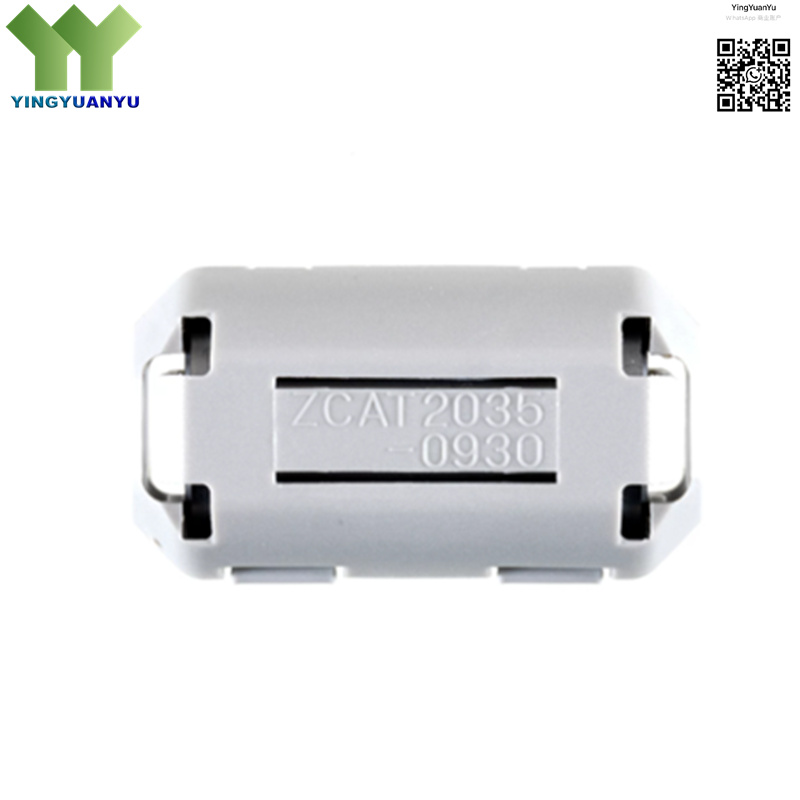

ZCAT2035-0930A
ZCAT2035-0930A
| Part Number | ZCAT2035-0930A |
|---|---|
| Manufacturer | TDK Corporation |
| Category | Ferrite Cores; Clip-on Ferrite Core; EMI Suppression Core |
| Description | Split Type Clip-on Ferrite Core, 9mm Inner Diameter, EMI/RFI Noise Suppression Filter for Cable and Wire |
Product Overview
The ZCAT2035-0930A is a high-performance snap-on ferrite core manufactured by TDK Corporation, dedicated to electromagnetic interference (EMI) and radio frequency interference (RFI) suppression. It adopts a split clip-on structure, which can be quickly installed on various cables and wires without disassembly or welding. The product uses high-performance nickel-zinc ferrite material, provides excellent high-frequency noise attenuation effect, effectively improves the electromagnetic compatibility (EMC) of electronic equipment, and is widely used in consumer electronics, industrial control, automotive electronics and other fields.
| Key Specifications | |
|---|---|
| Brand | TDK Corporation |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | Clip-on Ferrite Core (Split Type) |
| Mounting Type | Snap-on / Clip-on Cable Mount |
| Surface Marking / Silkscreen | ZCAT2035-0930A |
| Inner Diameter | 9.0 mm |
| Core Material | Nickel-Zinc Ferrite |
| Application Frequency | High Frequency Range |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Power Cables and Signal Lines EMI Filtering
- Consumer Electronics (Computers, TVs, Audio Devices)
- USB, HDMI, LAN and Communication Cables
- Industrial Control Equipment Wiring
- Automotive Electronic Cable Noise Reduction
- Switching Power Supply Output Lines
- Electromagnetic Compatibility (EMC) Compliance Solutions
- High Frequency Noise Suppression for Wires
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
