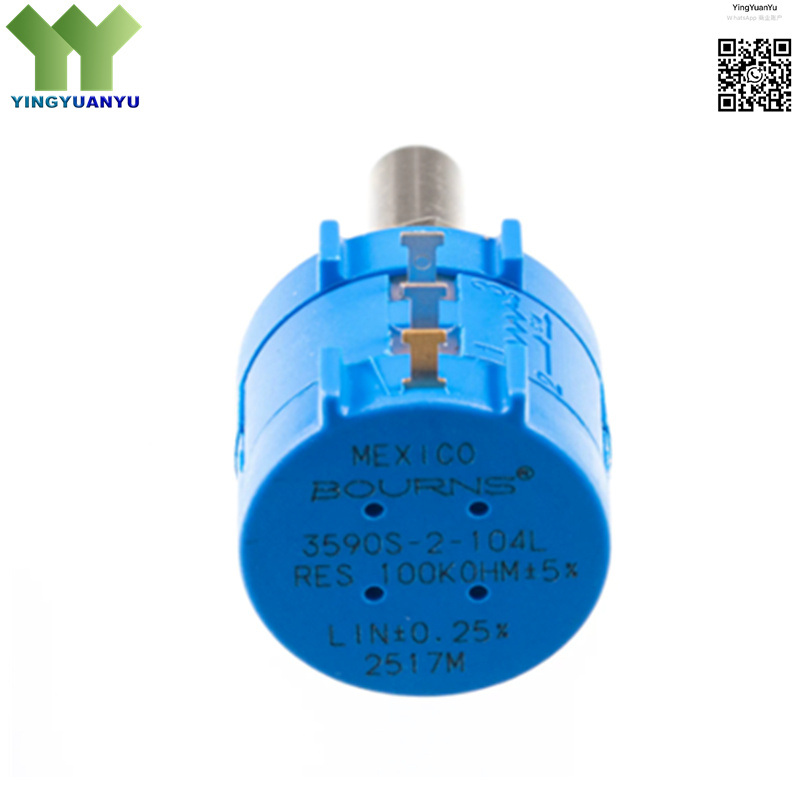

3590S-2-104L
| Part Number | 3590S-2-104L |
| Manufacturer | Bourns Inc. |
| Category | Passive Components > Resistors > Variable Resistors / Potentiometers |
| Description | 100 kΩ 10-Turn Wirewound Precision Potentiometer, 2W, Panel Mount with Solder Lug Terminals, ±5% Tolerance, Linear Taper |
Product Overview
The 3590S-2-104L is a high-precision 10-turn wirewound potentiometer from Bourns Inc., engineered for reliable voltage adjustment, calibration, and fine-tuning in industrial and commercial electronic circuits. It features a robust bushing panel-mount design, stable resistance performance, low temperature coefficient (±50 ppm/°C), and long mechanical life, making it ideal for applications requiring precise and consistent resistance tuning. The device offers smooth, repeatable adjustment, high durability, and excellent environmental resistance, ensuring stable operation even in demanding industrial, automotive, and communication environments.
Key Specifications
| Brand | Bourns Inc. |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | 3590 Series Wirewound Potentiometer, Bushing Mount |
| Mounting Type | Panel Mount, Solder Lug Terminals |
| Surface Marking / Silkscreen | 3590S-2-104L, 100K, 2W |
| Resistance Value | 100 kΩ |
| Power Rating | 2 W |
| Tolerance | ±5% |
| Taper | Linear |
| Number of Turns | 10-Turn |
| Temperature Coefficient | ±50 ppm/°C |
| Operating Temperature | -40°C to +125°C |
| Shaft Diameter | 6.35 mm |
Typical Applications
- Circuit Calibration & Voltage Adjustment
- Industrial Control & Test Equipment
- Automotive Electronic Systems
- Communication & Networking Devices
- Precision Instrumentation & Medical Equipment
- Aerospace & Defense Electronics
Order & Shipping Info
- Minimum Order Quantity (MOQ): 1 Piece
- Shipping Time: Shipped within 1-2 business days
- Delivery Time: 3-7 working days worldwide
- Shipping Methods: DHL, UPS, FedEx, EMS
- Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
