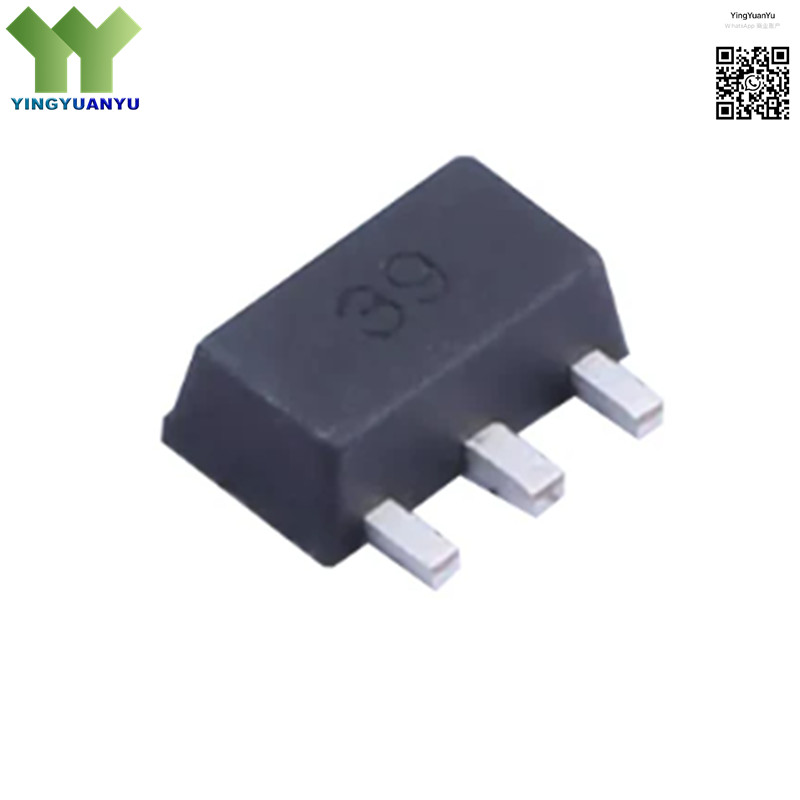

GALI-39+
GALI-39+
| Part Number | GALI-39+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Amplifiers; MMIC Gain Block Amplifiers |
| Description | Wideband MMIC Gain Block Amplifier, 0Hz~7GHz MHz, 9.8 dB Gain, 50Ω Impedance,3.1V~3.9V, SOT-89-3 Package |
Product Overview
The GALI-39+ is a high-performance wideband MMIC gain block amplifier designed for professional RF, microwave, and wireless communication systems. It operates from 0Hz~7GHz MHz with stable 9.8 dB power gain, low noise figure, high linearity, and consistent performance across the full frequency band. The device features fully matched 50Ω input and output impedance, single-voltage operation, built-in ESD protection, and excellent thermal stability for reliable operation in industrial and commercial environments. With its rugged design, compact form factor, and industry-leading consistency, it is widely used in high-gain signal amplification applications requiring stable and clean RF performance.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Frequency Range | 0Hz~7GHz MHz |
| Gain | 9.8 dB |
| Impedance | 50Ω |
| Package Type | SOT-89 |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- High-Gain Wideband RF Signal Amplification
- Wireless Communication Transceivers
- RF Receiver Front-End Modules
- Test & Measurement Instrumentation
- Microwave & Broadband RF Systems
- Industrial RF Sensors & IoT Devices
- 4G/LTE/Wi-Fi Network Equipment
- Compact Surface-Mount RF Amplifier Designs
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
