ADRF5020BCCZN-R7
ADRF5020BCCZN-R7
| Part Number | ADRF5020BCCZN-R7 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > RF Switches |
| Description | High-isolation, ultra-broadband 100MHz to 30GHz silicon SPDT (Single-Pole, Double-Throw) RF switch featuring low insertion loss and high power handling capability. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADRF5020BCCZN-R7 is a high-isolation SPDT RF switch from ADI built on silicon process, covering 100MHz to 30GHz ultra-wideband. Designed for 5G base stations, microwave radios, radar and ATE test gear, it delivers low insertion loss and superior channel isolation to avoid signal crosstalk. It supports 3.3V CMOS/TTL control and requires ±3.3V dual power supply. Packaged in a compact LGA-20 (3.00mmx3.00mmx0.85mm), it features great linearity and power handling for dense wideband RF transceiver designs.
Core Advantages
Ultra-Broadband Frequency Coverage
Provides flat and continuous RF performance from 100MHz to 30GHz, enabling a single component layout to cover multiple wireless bands and simplify wideband transceiver front-end architectures.
Exceptional Signal Isolation and Integrity
Delivers high isolation behavior across the entire bandwidth, reaching up to 65 dB at lower frequencies and maintaining greater than 60 dB at 30GHz, safeguarding sensitive receive paths against cross-channel leakage.
Low Insertion Loss and High Linearity
Features a typical insertion loss of only 2.0 dB at 30GHz combined with excellent continuous wave power handling (28 dBm), ensuring minimal attenuation and clean, distortion-free signal routing.
Standard Dual Supply Control Logic
Operates with VDD=3.3V positive supply and VSS=-3.3V negative supply, paired with standard 3.3V positive control voltages; negative rail supply is required for normal operation.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | LGA-20 (3.00mm x 3.00mm x 0.85mm ) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |

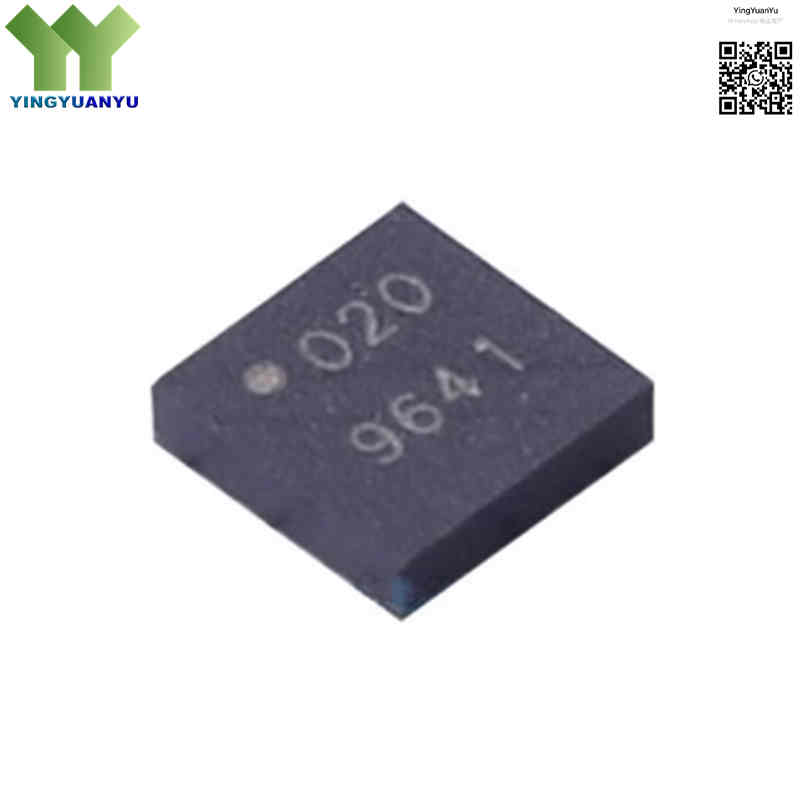

| Surface Marking / Silkscreen | 020 Marking |
| Switch Topology | SPDT (Single-Pole, Double-Throw) |
| Frequency Range | 100 MHz to 30 GHz |
| Insertion Loss | 2.0 dB @ 30 GHz (Typical) |
| Isolation | 65 dB @ 100 MHz / 60 dB @ 30 GHz (Typical) |
| Input P1dB (Compression Point) | 28 dBm (Typical) |
| Input IP3 | 52 dBm (Typical) |
| Switching Time | Rise/Fall Time: 15 ns / On/Off Settling Time: 50 ns (Typical) |
| Supply Voltages | V_DD = 3.3 V and V_SS = -3.3 V (Mandatory Dual Supply Operation) |
| Operating Temperature Range | -40°C to +85°C (Industrial Temperature Specification) |
Typical Applications
- 5G Wireless Cellular Infrastructure, Small Cells, and Massive MIMO Active Antenna Systems (AAS)
- Point-to-Point Microwave Backhaul Radios and High-Frequency Satellite Communication (SATCOM) Terminals
- Military Radar Sub-assemblies, Phased Array Systems, and Electronic Countermeasure (ECM) Equipment
- High-Speed Automated Test Equipment (ATE), RF Calibration Blocks, and Lab Instrumentation Backplanes
- Broadband Electronic Warfare Front-ends, Specialized Avionics, and Multi-band Radios
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your current stock inventory of the ADRF5020BCCZN-R7 completely authentic and factory-original?
A: Yes, we guarantee that all ADRF5020BCCZN-R7 RF switches in our stock are 100% brand-new, factory-original components from Analog Devices Inc., stored and handled in strict compliance with ESD anti-static and MSL dry-pack moisture guidelines.
Q2: What is the mechanical and packaging distinction indicated by the “-R7” suffix within this part number?
A: The “-R7” suffix specifies that the devices are delivered on a 7-inch standard plastic reel, containing 500 units per reel. This configuration is fully optimized for pick-and-place automation on high-throughput surface mount technology (SMT) production lines.
Q3: What is the main design difference between a reflective switch like the ADRF5020 and an absorptive switch topology?
A: The ADRF5020 uses a non-reflective 50 Ω design, where the off-state ports are internally terminated to 50 Ω. This prevents signal reflections back to the source, improving return loss and system stability, making it ideal for high-frequency applications.
Q4: How can our RF design group request official S-parameter models, evaluation board layouts, or a bulk volume pricing tier quote?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
