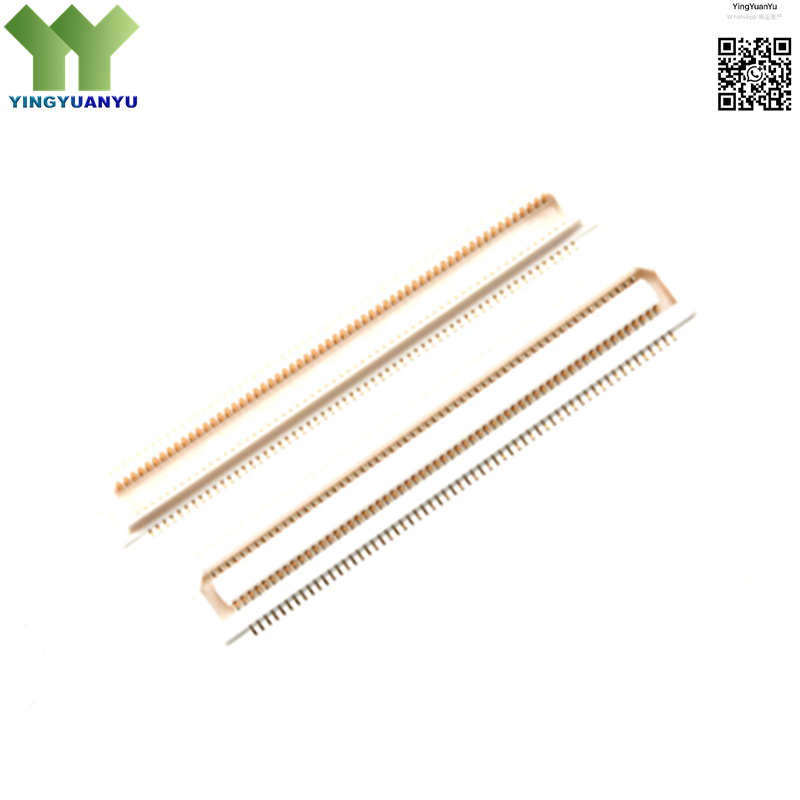

AXK5A2137YG
AXK5A2137YG
| Part Number | AXK5A2137YG |
|---|---|
| Manufacturer | Panasonic (NAIS) |
| Category | Board-to-Board Connectors; Surface Mount Connector |
| Description | 0.5mm Pitch Board-to-Board Connector, 120 Position, Stacking Height 0.5mm, SMT Type |
Product Overview
The AXK5A2137YG is a high-density, ultra-fine-pitch board-to-board connector manufactured by Panasonic, designed for compact electronic devices requiring reliable PCB-to-PCB connections. It features a 0.5mm ultra-fine pitch, 120 contact positions, and a low-profile stacking height, delivering high signal integrity, mechanical stability, and secure mating retention. The RoHS-compliant SMT design supports high-speed assembly, making it ideal for smartphones, wearables, tablets, and other miniaturized consumer and industrial electronics.
| Key Specifications | |
|---|---|
| Brand | Panasonic (NAIS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | Surface Mount Connector |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | AXK5A2137YG |
| Pitch | 0.5 mm |
| Number of Positions | 120 |
| Stacking Height | 0.5 mm |
| Operating Temperature | -55°C to +85°C |
Typical Applications
- Smartphones, Tablets and Handheld Mobile Devices
- Wearable Electronics: Smart Watches, TWS Earbuds
- Digital Cameras and Compact Imaging Equipment
- Portable Medical and Healthcare Devices
- PCB-to-PCB Stacking in Miniature Electronics
- High-Density Consumer Electronic Modules
- Industrial Handheld and Compact Control Units
- Ultra-Slim Electronics and IoT Sensor Modules
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
