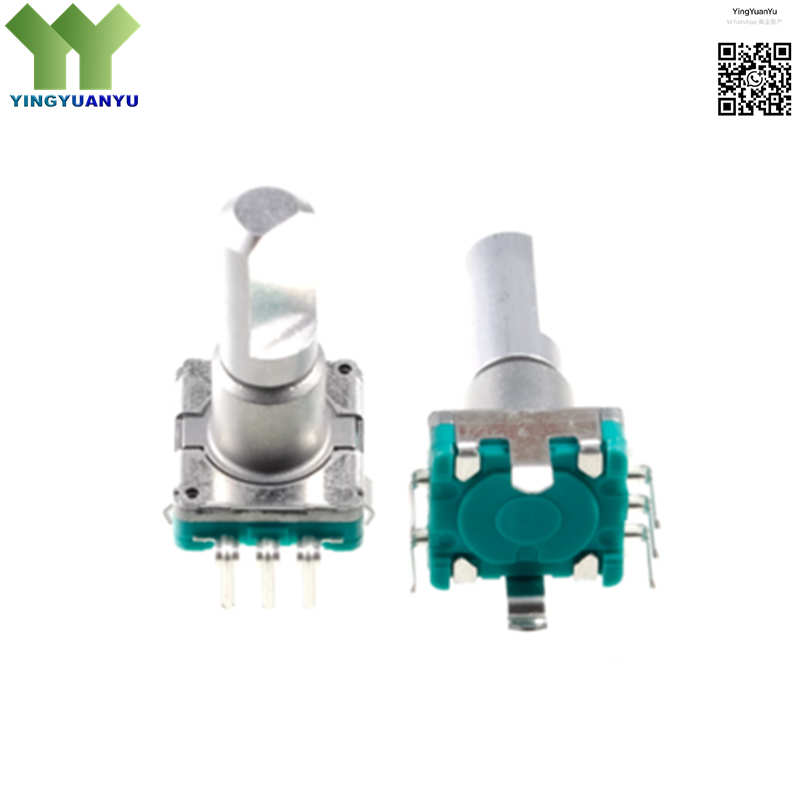

EC11E09244BS
EC11E09244BS
| Part Number | EC11E09244BS |
| Manufacturer | ALPS |
| Category | Electromechanical Component > Rotary Encoder with Push Switch |
| Description | Incremental Rotary Encoder with Integral Push Button, Vertical Through Hole Type for Volume Adjustment & Function Selection Control |
Product Overview
The EC11E09244BS is a high-quality incremental rotary encoder manufactured by ALPS, integrating rotary incremental encoding mechanism and center push switch inside a single compact component. It outputs standard A/B phase quadrature signal while supporting center pressing trigger for short-circuit switch signal, realizing dual functions of parameter adjustment and mode confirmation. Adopting durable metal contact structure and precision mechanical positioning design, this encoder delivers consistent detent feel and long mechanical service life against frequent rotating and pressing operations. Standard through-hole mounting form enables reliable PCB soldering, widely adopted for audio equipment volume control, industrial panel setting and household appliance function selection.
Key Specifications
| Brand | ALPS |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | Vertical Through Hole Encoder Body |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | EC11E09244BS |
| Output Type | Incremental A/B Quadrature + SPST Push Switch |
| Core Feature | Detent Positioning, Combined Rotate & Press Control |
| Operating Temperature | -20°C ~ 70°C |
Typical Applications
- Car Audio Host Volume & Menu Selection Control Knob
- Home Hi-Fi Amplifier Volume and Function Switch Module
- Industrial Control Panel Parameter Adjustment Encoder Unit
- Medical Instrument Operation Panel Selection Control Component
- Multimedia Player & Radio Tuning and Volume Knob PCB
- Household Smart Oven / Washing Machine Function Selector
- Test Equipment Bench Setting and Menu Navigation Controller
- DIY Audio Equipment and Electronic Project Control Knob Parts
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is EC11E09244BS RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts vertical through-hole structure and through-hole soldering for PCB fixed assembly.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
