AXK6A2337YG
AXK6A2337YG
| Part Number | AXK6A2337YG |
|---|---|
| Manufacturer | Panasonic (NAIS) |
| Category | Board-to-Board Connectors; Board Stacking Connector |
| Description | 0.5mm Pitch Board-to-Board Stacking Connector, 120 Positions, Surface Mount Type, High-Density PCB Interconnect |
Product Overview

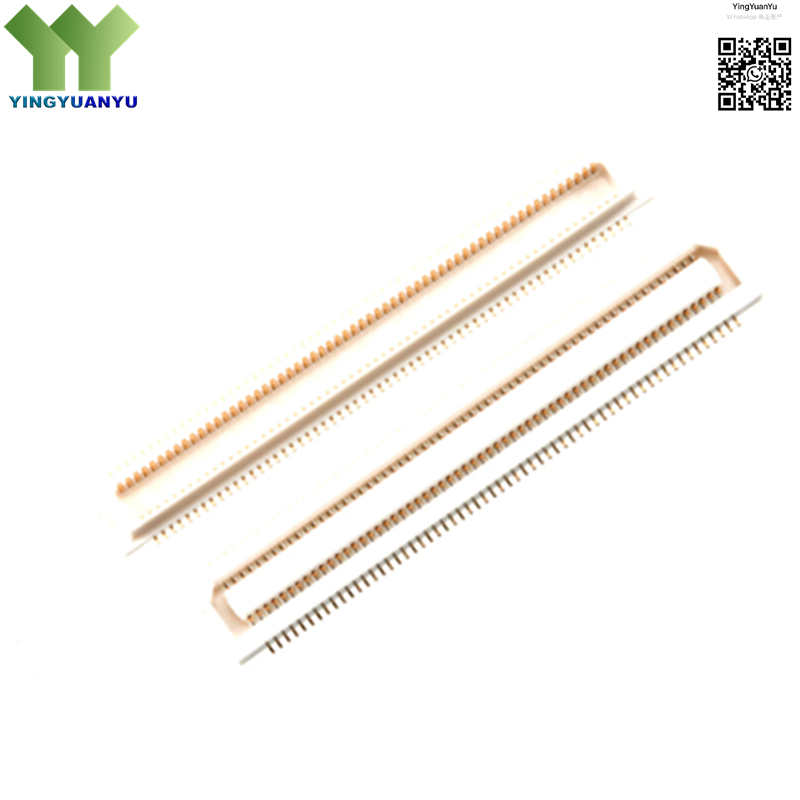

The AXK6A2337YG is a high-precision, ultra-fine pitch board-to-board stacking connector from Panasonic, engineered for reliable high-density PCB-to-PCB connections in compact electronic devices. It features a 0.5mm fine pitch, 120 contact positions, and a robust mating structure with excellent shock resistance and signal integrity. The SMT design supports high-volume automated assembly, while its low-profile construction maximizes space efficiency for slim and miniaturized electronic products.
| Key Specifications | |
|---|---|
| Brand | Panasonic (NAIS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | Surface Mount Connector |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | AXK6A2337YG |
| Pitch | 0.5 mm |
| Number of Positions | 120 |
| Contact Type | Board Stacking / Board-to-Board |
| Operating Temperature | -55°C to +85°C |
Typical Applications
- Smartphones, Tablets and Mobile Handheld Devices
- Wearable Electronics: Smart Watches, TWS Earbuds
- Digital Cameras and Compact Imaging Modules
- Portable Medical and Healthcare Electronics
- High-Density PCB Stacking Applications
- Ultra-Slim Consumer Electronic Devices
- Industrial Handheld Terminals and Sensors
- IoT and Miniaturized Electronic Modules
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
