EC11N1525404
EC11N1525404
| Part Number | EC11N1525404 |
| Manufacturer | ALPS |
| Category | Electromechanical Component > Incremental Rotary Encoder with Push Switch |

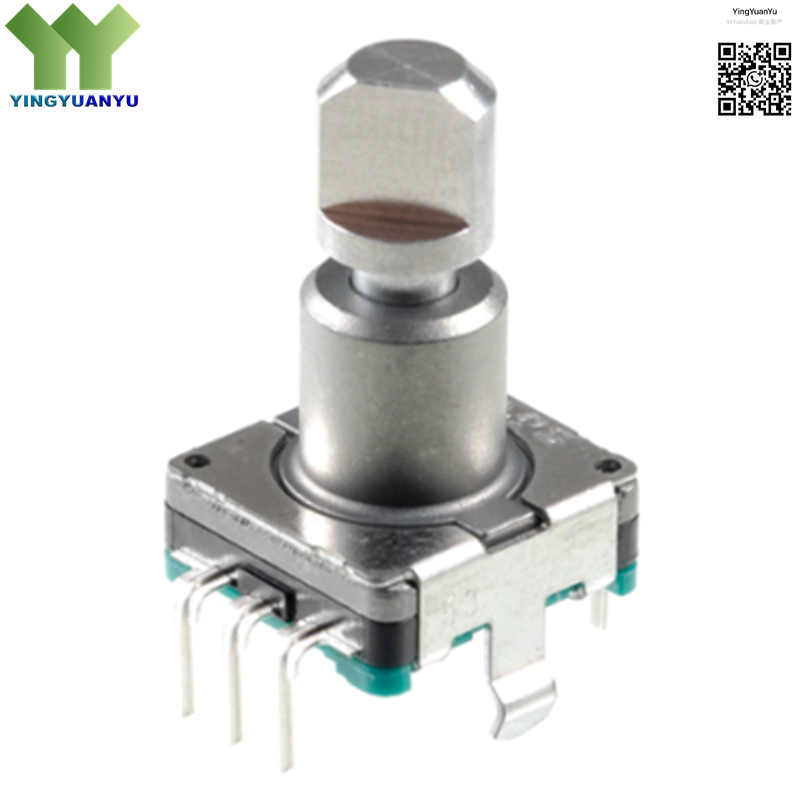

| Description | Shaft Type Incremental Rotary Encoder with Center Push Button, Through Hole Mount for Volume Control and Function Selection |
Product Overview
The EC11N1525404 is a precision incremental rotary encoder manufactured by ALPS, constructed with reliable mechanical contact structure and integrated center SPST push switch. It generates standard A/B two-phase quadrature pulse signals during rotation and outputs independent switching signal by central pressing operation, enabling parameter adjustment and function confirmation in one component. With stable detent positioning design for clear rotational tactility and outstanding long service life against frequent rotation and pressing cycles, this through-hole mounted encoder features compact dimension for space-limited PCB layout. It is widely used in audio equipment, household appliances, industrial control panels and automotive electronic control units for man-machine interactive adjustment.
Key Specifications
| Brand | ALPS |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | Standard Shaft Rotary Encoder Body |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | EC11N1525404 |
| Signal Output | A/B Quadrature Encoder + Center Push Switch |
| Core Feature | Detent Click Position, Rotate & Press Dual Control |
| Operating Temperature | -20°C ~ 70°C |
Typical Applications
- Automotive Car Radio Volume and Menu Selection Control Knob
- Home Audio Amplifier and Active Speaker Volume Adjustment Unit
- Industrial Control Instrument Panel Parameter Setting Encoder
- Medical Diagnostic Equipment Operation Menu Controller
- Smart Home Kitchen Appliance Function Selector Knob
- Multimedia Player, Radio Tuning and Volume Control PCB Parts
- Bench Test Equipment and Power Supply Adjustment Components
- DIY Electronic Projects and Hi-Fi Audio Equipment Control Knob
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is EC11N1525404 RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts standard shaft structure with through-hole soldering for PCB fixed installation.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
