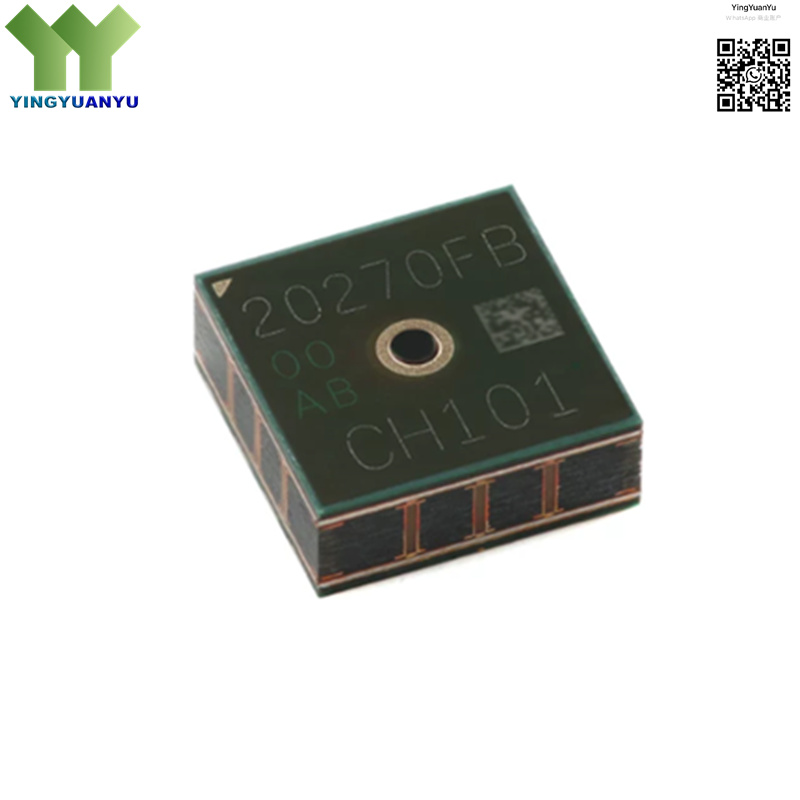

CH101-00ABR
CH101-00ABR
| Part Number | CH101-00ABR |
|---|---|
| Manufacturer | TDK InvenSense |
| Category | Ultrasonic Distance Sensors; MEMS Ultrasonic Sensor Module |
| Description | Ultra-low-power MEMS ultrasonic distance sensor, I2C interface,175kHz, LGA-8(3.5×3.5) surface-mount package for proximity and range detection |
Product Overview
The CH101-00ABR is a high-performance, ultra-low-power MEMS ultrasonic distance sensor designed for accurate proximity and range measurement in compact electronic devices. It offers reliable distance detection regardless of target color, transparency, or ambient light conditions, with low power consumption ideal for battery-powered applications. The sensor integrates ultrasonic transducer and signal processing circuitry, supporting simple I2C communication for easy system integration.
| Key Specifications | |
|---|---|
| Brand | TDK InvenSense |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | LGA-8(3.5×3.5) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | CH101 Series Marking |
| Sensor Type | MEMS Ultrasonic Distance Sensor |
| Measurement Range | 1.2m |
| Interface | I2C Serial Interface |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Wearable Devices and Smart Headphones
- Consumer Electronics Proximity Detection
- IoT Devices and Battery-powered Sensors
- Robotics Obstacle Avoidance
- Smart Home Automation and Presence Detection
- Portable Electronic Device User Detection
- Industrial Distance and Proximity Sensing
- Ambient Light-independent Detection Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
