ERA-3SM+
ERA-3SM+
| Part Number | ERA-3SM+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Amplifiers; Broadband MMIC Amplifiers |
| Description | DC-3 GHz InGaP HBT MMIC Amplifier, 23.4dB Gain, 2.6dB Noise Figure, 3.2V, SMD-4P Package |
Product Overview

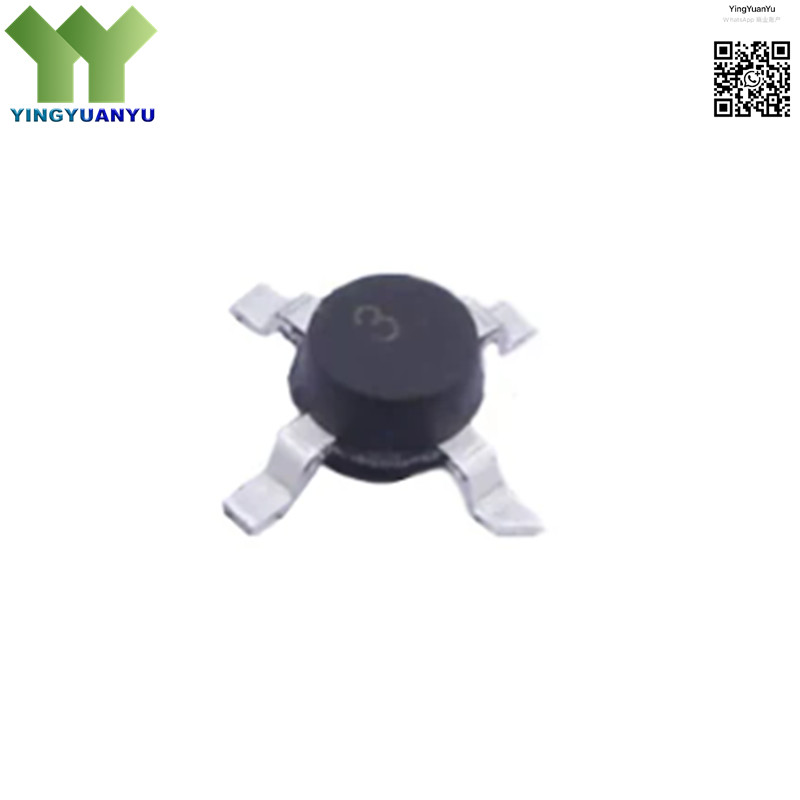

The ERA-3SM+ is a high-performance broadband monolithic microwave integrated circuit (MMIC) amplifier manufactured by Mini-Circuits using InGaP HBT technology. Operating across a wide frequency range from DC to 3 GHz, it delivers a high gain of 23.4 dB with a low noise figure of 2.6 dB, making it ideal for high-dynamic-range RF signal amplification. The device features unconditional stability, internal 50-ohm matching, and low performance variation over temperature. Housed in a compact SMD-4P (Micro-X) package, it supports easy surface-mount integration and reliable operation in various RF systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Frequency Range | 0 Hz ~ 3 GHz |
| Gain | 23.4 dB (Typ.) |
| Noise Figure | 2.6 dB (Typ.) |
| P1dB Output Power | 12.5 dBm (Typ.) |
| Supply Voltage | 3.0 V ~ 3.4 V (3.2 V Typ.) |
| Supply Current | 35 mA (Typ.) |
| Package Type | SMD-4P (Micro-X) |
| Operating Temperature | -45°C to +85°C |
Typical Applications
- Cellular / PCS / 3G Base Stations
- CATV, Cable Modems & DBS Systems
- Fixed Wireless & WLAN Infrastructure
- Microwave Radio & Test Equipment
- RF Receiver Front-Ends
- Signal Processing & Amplification Modules
- Broadband Communication Systems
- Industrial RF & Wireless Applications
