HMC508LP5ETR
HMC508LP5ETR
| Part Number | HMC508LP5ETR |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) / Hittite Microwave |
| Category | Integrated Circuits (ICs) > RF and Wireless > VCOs (Voltage Controlled Oscillators) |
| Description | GaAs InGaP HBT MMIC Voltage Controlled Oscillator (VCO) with Integrated Divide-by-2 Prescaler, 7.3 GHz to 8.2 GHz, 32-QFN 5mm x 5mm Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
HMC508LP5ETR is high-performance GaAs InGaP HBT MMIC VCO with built-in divide-by-2 prescaler from ADI (Hittite). Operating 7.3–8.2 GHz with 3.65–4.1 GHz divided output, it integrates resonator, varactor, buffer and divider on one die to simplify microwave LO design. Running on 5V supply with +5 dBm typical output, it delivers ultra-low phase noise and low microphonics. Packaged in 5×5mm 32-lead RoHS QFN, tape & reel shipping for radio, VSAT and military microwave gear.
Core Advantages
Integrated Divide-by-2 Prescaler
Onboard frequency divider reduces primary oscillation frequency, matching low-cost low-frequency PLL chips to build high-precision phase-locked loop easily.
Ultra-Low Phase Noise Architecture
Adopts proprietary InGaP HBT process, phase noise reaches -113 dBc/Hz at 100 kHz offset, effectively reducing signal jitter for high-order modulation communication systems.
Highly Integrated Monolithic Design
Varactor tuning diode, resonator node, buffer amplifier and prescaler integrated on one chip, stable thermal performance without complicated external peripheral circuits.
Stable Output Power & Load Isolation
Delivers steady +5 dBm typical output power in full tuning range. Internal buffer isolates oscillator core from load changes, maintaining stable frequency performance.
Key Specifications
| Brand | Analog Devices Inc. (ADI) / Hittite Microwave VCO Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Green QFN Matrix (“E” suffix) |
| EDA/CAD Model | Schematic Symbols, 3D Step Models, and Gerber footprints |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 32-QFN (5mm x 5mm) |
| Mounting Type | Surface Mount |

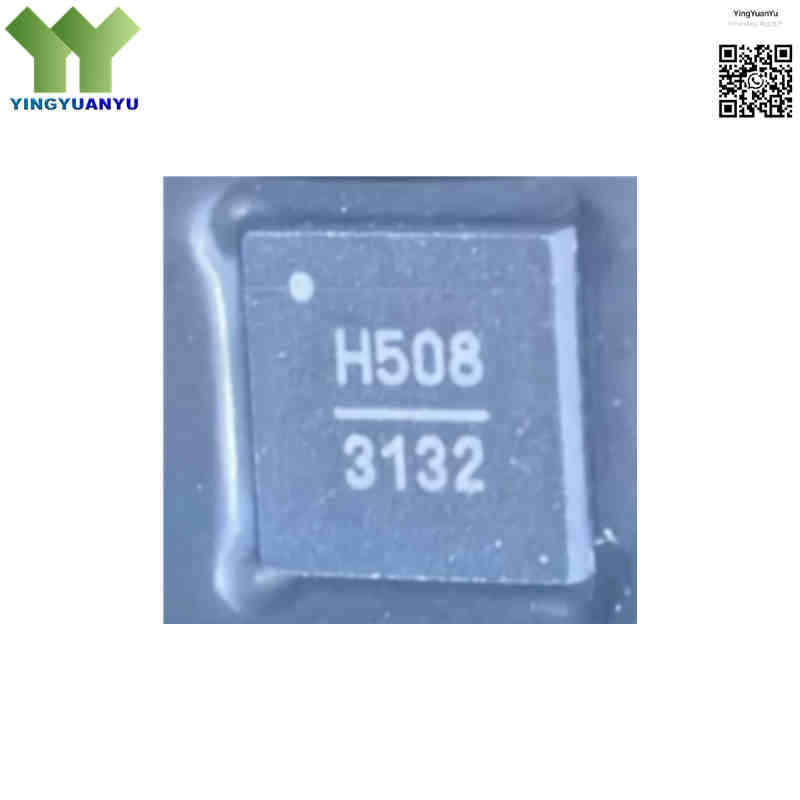

| Surface Marking / Silkscreen | H508 Marking |
| Frequency Range (Fundamental) | 7.3 GHz to 8.2 GHz |
| Divided Output Frequency | 3.65 GHz ~ 4.1 GHz |
| Prescaler Division Ratio | Divide-by-2 Integrated Frequency Prescaler (Fo/2) |
| Typical Phase Noise | -113 dBc/Hz at 100 kHz Offset (Relative to Carrier) |
| Output Power (RFOUT) | +5 dBm Typical (+2 dBm Minimum) |
| Tuning Voltage Range | 2V to +13V (Analog Control Sweep) |
| Supply Voltage | +5.0V ± 5% Nominal Operation |
| Supply Current | Typically 220 mA, Max 280mA (VCO + Buffer + Prescaler Active) |
| Operating Temperature Range | -40°C to +85°C Industrial Operating Grade |
| Storage Temperature Range | -55°C ~ +125°C |
| Impedance Matching | 50 Ohm Internal Matched RF Ports |
| Packaging Format | Tape & Reel (7-inch Standard Reel, TR suffix) |
| Thermal Resistance (θJA) | 24°C/W with Full PCB Thermal Pad |
| Technology Process | GaAs InGaP HBT MMIC |
| Control Interface | Single Analog Tuning Voltage Input |
Typical Applications
- Point-to-Point Microwave Infrastructure and Point-to-Multipoint Digital Radios
- VSAT (Very Small Aperture Terminal) Satellite Communication Subsystems
- Test and Measurement Instrument Synthesizers, Signal Generators, and RF Analyzers
- Military Radar Receiver Front-Ends, Electronic Warfare (EW), and Guided Avionics
- Fiber Optic Clock Recovery Networks and High-Speed Serial Backplane Interconnects
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does the “TR” suffix stand for?
A1: TR means Tape & Reel packaging, fit for automatic SMT pick-and-place equipment.
Q2: How does the built-in prescaler simplify PCB design?
A2: It cuts feedback frequency down to 3.65~4.1GHz, lowering high-frequency line loss and matching cheap low-frequency PLL chips.
Q3: What’s the advantage of GaAs InGaP HBT tech?
A3: Low flicker noise delivers better phase noise performance and cleaner microwave signals than silicon CMOS.
Q4: How to handle thermal layout for this 5×5mm package?
A4: Lay multiple thermal vias under exposed pad to drain heat to ground plane and control chip junction temperature.
Q5: Is this VCO industrial temperature rated?
A5: Yes, operating temperature range covers -40℃ to +85℃ for industrial equipment.
Q6: What tuning voltage do I need for full frequency sweep?
A6: Tuning voltage range is 2V to 13V to cover the full 7.3~8.2GHz band.
Q7: Are samples available for testing?
A7: We offer small test samples, submit your demand through the inquiry form.
Q8: Does the chip support 50-ohm system matching?
A8: All RF ports have internal 50-ohm matching, no extra matching components needed.
