IMX415-AAQR-G
IMX415-AAQR-G
| Part Number | IMX415-AAQR-G |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.8″ 8.46 MP 4K Color CMOS Solid‑State Image Sensor, STARVIS Technology, High Sensitivity, LGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview

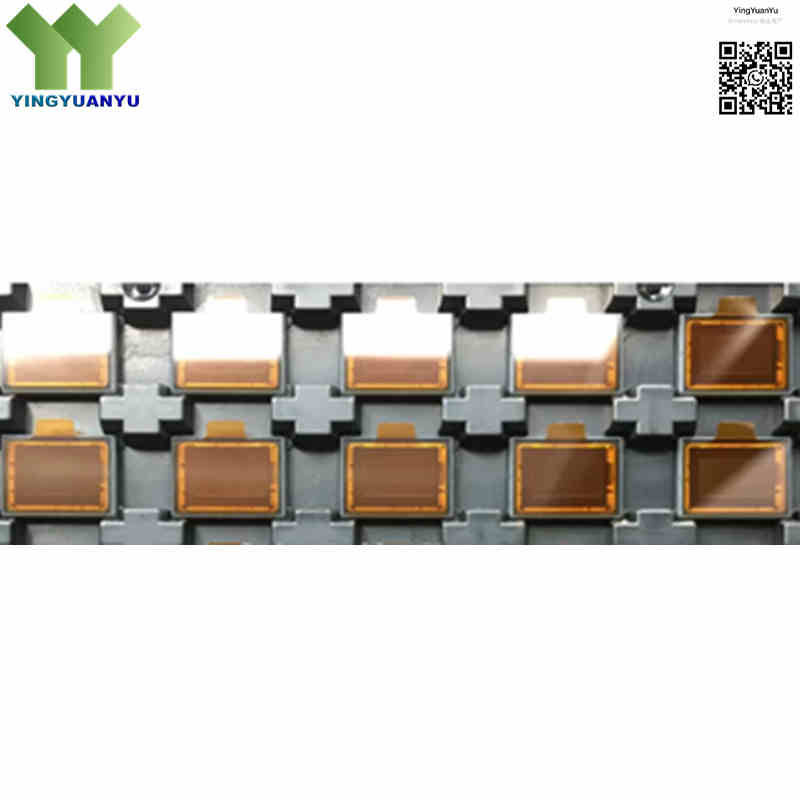

The IMX415‑AAQR‑G is Sony’s 1/2.8‑inch 8.46MP STARVIS BSI CMOS image sensor. It delivers 4K UHD 3840×2160 output, featuring excellent low‑light sensitivity and DOL‑WDR wide dynamic range. Housed in LGA package, it supports MIPI CSI‑2 interface for surveillance, industrial FA and AI vision systems.
Core Advantages
4K UHD High‑Resolution
8.46MP effective pixels, 3840×2160 4K UHD output for clear image details.
STARVIS BSI Low‑Light Performance
1.45 µm back‑illuminated pixel, high sensitivity and low noise for dim‑light scenarios.
High‑Speed MIPI CSI‑2 Output
2/4‑lane MIPI CSI‑2, up to 90.9fps@10‑bit, supports RAW10 / RAW12 data format.
DOL‑WDR HDR & Flexible Readout
Multi‑exposure HDR function, supports binning, window cropping and inverted readout modes.
Molded LGA & Wide Temperature
Cost‑effective molded LGA SMT package, operating temperature ‑30℃ ~ +85℃ for outdoor surveillance.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | LGA (Land Grid Array) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | IMX415‑AAQR |
| Chroma | Color (RGB Bayer Pattern) |
| Effective Array Size | 3864 (H) x 2192 (V), approx. 8.46 Megapixels |
| Recommended Recording Pixels | 3840 (H) x 2160 (V), approx. 8.29 Megapixels (4K UHD) |
| Optical Format | Type 1/2.8 inch (Diagonal 6.43 mm) |
| Pixel Size | 1.45 µm (H) x 1.45 µm (V) |
| Maximum Frame Rate | 90.9 fps @ 10‑bit / 60.3 fps @ 12‑bit (All‑pixel scan mode) |
| Output Interface | MIPI CSI‑2 (2‑Lane / 4‑Lane) Serial Data Output, RAW10 / RAW12 |
| Control Interface | I2C Serial Communication |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter |
| Power Supply | Analog 2.9V, Digital 1.1V, Interface 1.8V |
| Input Clock Frequency | 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz |
| Shutter Type | Electronic Rolling Shutter, Variable Integration Time |
| HDR Function | DOL‑WDR Digital Overlap Multi‑Exposure HDR |
| Operating Temperature Range | -30°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |
Typical Applications
- 4K Ultra HD IP Security Surveillance Cameras and Smart City Systems
- Industrial FA Machine Vision, Factory Automation Inspection Equipment
- Smart Home Security Cameras and AI Vision Terminals
- Drone / UAV Aerial Camera Devices
- High‑Definition Video Capture and Enterprise Video Conferencing
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What are main specs of IMX415‑AAQR‑G?
A: 1/2.8‑inch STARVIS CMOS sensor, 8.46MP effective pixels, 3840×2160 4K UHD output. Max 90.9fps@10‑bit, with DOL‑WDR HDR, molded LGA package.
Q2: What is the difference between IMX415‑AAQR‑G and IMX415‑AAQR‑C?
A: Same die and firmware. ‑G is molded plastic LGA for surveillance; ‑C is ceramic LGA for industrial use. They are pin‑to‑pin compatible.
Q3: IMX415‑AAQR‑G vs IMX415‑AAMR‑G?
A: Same chip, different LGA pin‑out layout. Not pin‑compatible. AAQR for surveillance, AAMR for industrial FA vision.
Q4: What interfaces does IMX415‑AAQR‑G use?
A: MIPI CSI‑2 (2/4‑lane) for RAW10/RAW12 data output. I2C for register configuration, works with most mainstream ISP and SoC.
Q5: What alternative sensors can replace IMX415‑AAQR‑G?
A: IMX715 is pin‑compatible drop‑in alternative. IMX678 (STARVIS 2) offers improved low‑light performance. Please verify pinout and firmware before replacement.
Q6: When to choose molded LGA IMX415‑AAQR‑G?
A: Molded plastic LGA is cost‑effective, suitable for general outdoor surveillance and civilian vision projects.
Q7: How can I get datasheet and bulk price?
A: Submit quick inquiry form for official datasheet, pinout guide, stock status and volume pricing.
