LFCN-4400+
LFCN-4400+
| Part Number | LFCN-4400+ |
| Manufacturer | Mini-Circuits |
| Category | RF Components > RF Filters > Multilayer Ceramic Low Pass Filter |

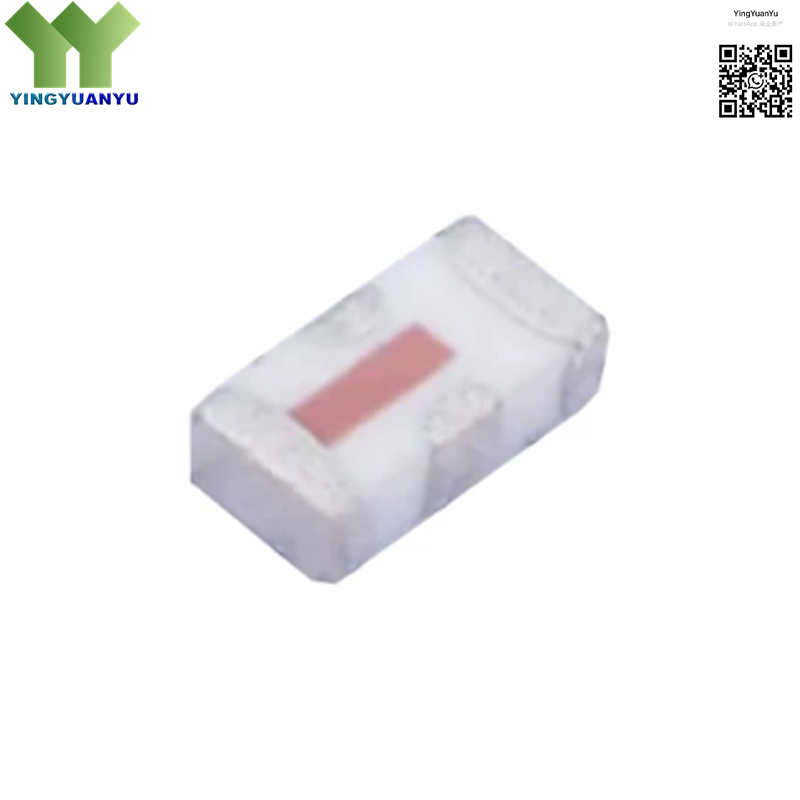

| Description | 50Ohm SMD Low Pass Filter, DC~5290MHz Cutoff Frequency, RF Harmonic & Spurious Noise Suppression,SMD-4P,3.2×1.6mm Package |
Product Overview
The LFCN-4400+ is a compact surface-mount low-pass RF filter developed by Mini-Circuits with a 5290MHz cutoff frequency. Built with advanced multilayer ceramic dielectric technology, this component maintains low insertion loss across full DC to 5290MHz passband and provides outstanding high-frequency stopband attenuation to suppress PA harmonics, local oscillator spurious emissions and unwanted out-of-band interference. Mini SMD footprint supports fully automated SMT pick-and-place production and ensures stable electrical performance across a wide working temperature range. It is widely implemented for front-end signal filtering, output harmonic cancellation and signal purification in broadband microwave modules, 5G sub-6GHz circuits and high-frequency laboratory RF test equipment.
Key Specifications
| Brand | Mini-Circuits |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | SMD-4P,3.2×1.6mm Package |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | LFCN-4400+ |
| Passband Range | DC ~ 5290MHz |
| Nominal Impedance | 50 Ohm |
| Passband Insertion Loss | 1dB |
| Operating Temperature | -40°C ~ 85°C |
Typical Applications
- Sub-6GHz 5G Communication Transceiver Front-End Filter Circuits
- Broadband Microwave RF Signal Generator & Test Bench Equipment
- High Frequency RF Power Amplifier Output Harmonic Suppression Unit
- Wi-Fi 6/6E & UWB High Speed Wireless Module Filter Design
- Software Defined Radio(SDR) Wideband Intermediate Frequency Filter
- ISM High Frequency Industrial Wireless Data Transmission Boards
- Microwave Receiver Spurious Interference Elimination Circuits
- Lab High Frequency Spectrum Analyzer Input Matching Filter Modules
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is LFCN-4400+ RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts SMD-4P,3.2×1.6mm package and surface mount type for PCB assembly.
Q4: Are these brand new original Mini-Circuits products?
A:Yes, all items are original new stock with 1-year warranty.
