MD1506
| Part Number | MD1506 |
| Manufacturer | Rainsun |
| Category | Antennas; SMD Antennas; RF Antennas |

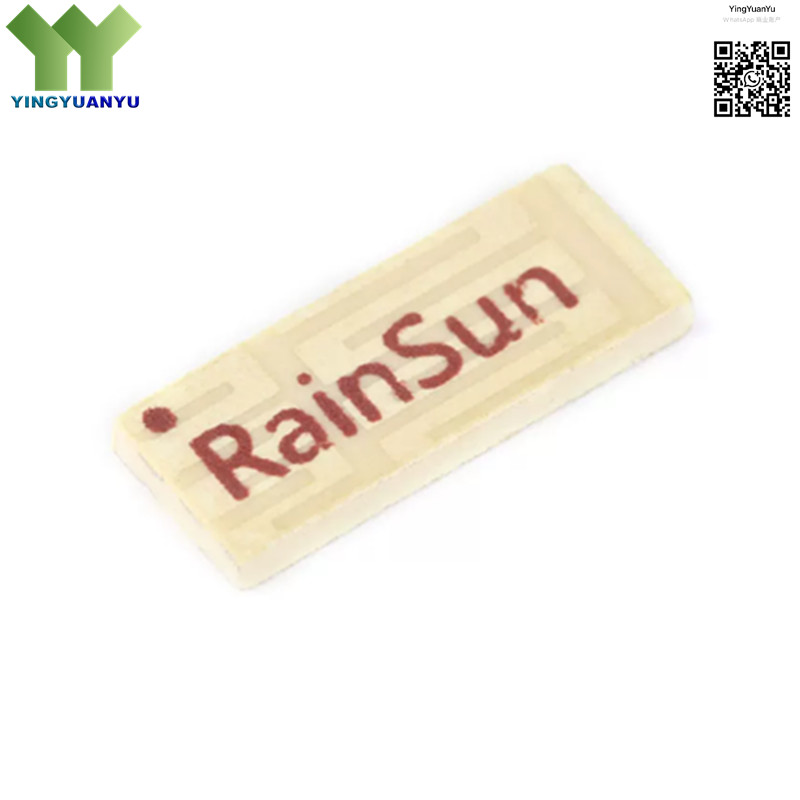

| Description | Multi-Band SMD Ceramic Patch Antenna, 820-1950MHz, -0.3dBi Gain, 50Ω Impedance, 15.0×6.5×1.63mm |
Product Overview
The MD1506 is a compact, high-performance SMD ceramic patch antenna designed for multi-band wireless communication applications. Operating across the 820-1950MHz frequency range with a center frequency of 1.13GHz, it supports GSM, DCS, CDMA, and PCS standards. With a low-profile SMD package and optimized radiation performance, this antenna offers reliable connectivity in compact PCB designs, making it ideal for consumer electronics, IoT devices, and embedded systems requiring robust RF performance in limited space.
Key Specifications
| Brand | Rainsun |
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Available Upon Request |
| Warranty | 1 Year |
| Package / Case | SMD, 15.0mm × 6.5mm × 1.63mm |
| Mounting Type | Surface Mount (SMD) |
| Frequency Range | 820MHz ~ 1950MHz |
| Center Frequency | 1.13GHz |
| Gain | -0.3dBi |
| Impedance | 50Ω |
| Antenna Type | Ceramic Patch Antenna |
Typical Applications
- GSM / DCS / CDMA / PCS Wireless Modules
- IoT Devices and Smart Home Systems
- Wearable Electronics
- Industrial Wireless Communication Equipment
- Embedded RF Transceiver Systems
Order & Shipping Info
- Minimum Order Quantity (MOQ): 1 Piece
- Shipping Time: Shipped within 1-2 business days
- Delivery Time: 3-7 working days worldwide
- Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
