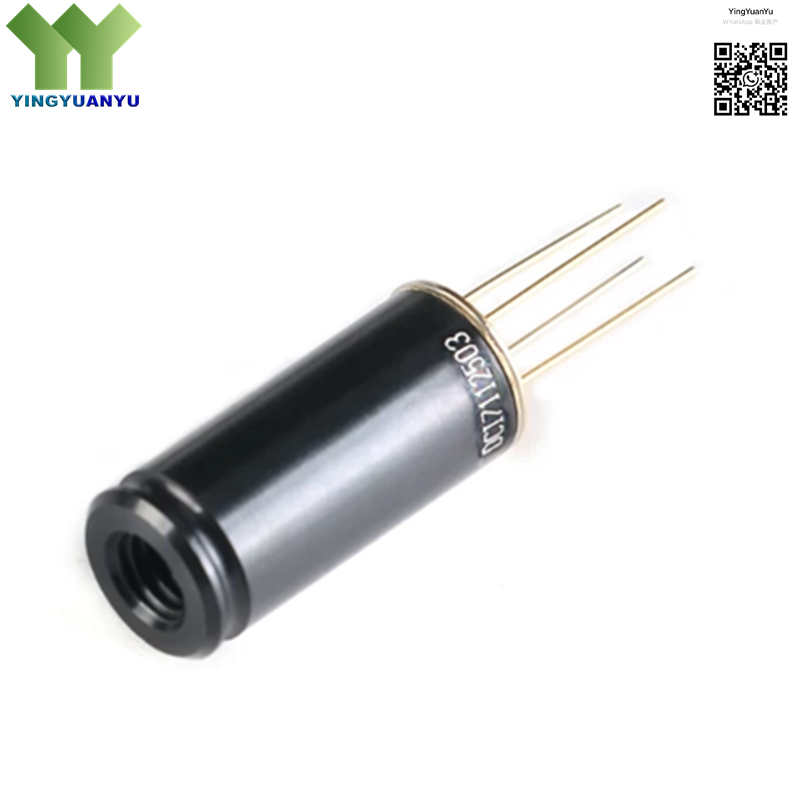

MLX90614ESF-DCI-000-TU
MLX90614ESF-DCI-000-TU
| Part Number | MLX90614ESF-DCI-000-TU |
| Manufacturer | Melexis |
| Category | Sensors > temperature Sensors > Non-Contact IR Infrared Thermometer Sensor |
| Description | Infrared Non-Contact temperature Sensor, Digital SMBus/PWM Output, Dual Zone IR Detector,TO-39 Package |
Product Overview
The MLX90614ESF-DCI-000-TU is an integrated non-contact infrared temperature sensor designed by Melexis with high-precision IR sensing chip and signal processing circuitry integrated inside TO-39 package. It adopts dual infrared detector design to measure object ambient and target temperature simultaneously, supporting SMBus digital communication and PWM signal output for flexible MCU connection. Featuring high measurement accuracy, strong anti-interference and wide working temperature range, this contactless IR sensor eliminates physical contact with measured objects, widely used for industrial temperature monitoring, home appliance thermal detection, medical non-contact temperature measurement and IoT thermal sensing equipment.
Key Specifications
| Brand | Melexis |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | TO-39 |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | MLX90614ESF-DCI-000-TU |
| Object Temp Measurement Range | -70°C ~ 380°C |
| Ambient Operating Temp Range | -40°C ~ 125°C |
| Communication Interface | SMBus, PWM |
| Supply Voltage | 2.6V~3.6V |
| Field of View | DCI Narrow Angle |
Typical Applications
- Non-Contact Human Body Temperature Measurement Module
- Industrial Equipment Surface Temperature Monitoring
- Home Appliance Oven & Heater Thermal Detection
- Automotive Engine Component Temp Inspection
- IoT Wireless Environmental Thermal Sensing Nodes
- Food Processing Production Line Temperature Check
- Medical Portable Non-contact Thermometer Equipment
- HVAC Air Duct & Pipeline Temperature Detection
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is MLX90614ESF-DCI-000-TU RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts TO-39 package and through hole mounting type for PCB assembly.
Q4: How about your stock and delivery lead time?
A: Most items are in stock, items ship out within 1-2 business days after payment confirmed.
