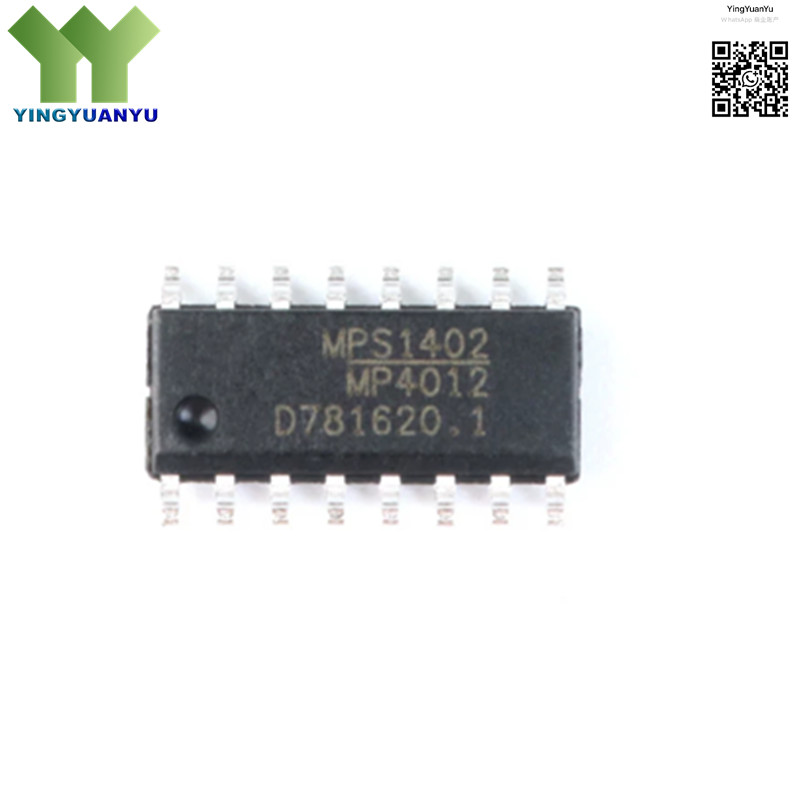

MP4012DS-LF-Z
MP4012DS-LF-Z
| Part Number | MP4012DS-LF-Z |
|---|---|
| Manufacturer | Monolithic Power Systems (MPS) |
| Category | Power Management ICs; Offline PWM Switching Regulator |
| Description | High-Performance Offline PWM Current-Mode Controller, Low Power, 700V,580kHz,8V~55V, SOIC-16 Package |
Product Overview
The MP4012DS-LF-Z is a highly integrated offline PWM current-mode switching regulator designed for high-efficiency AC-DC power supply applications. It integrates a 700V power MOSFET, internal compensation, and comprehensive protection features to minimize external components and reduce design complexity. The device achieves ultra-low standby power consumption, high reliability, and excellent stability for low-power adapter, charger, and auxiliary power supply designs. Housed in a standard SOIC-16 surface-mount package, it provides cost-effective, compact, and reliable AC-DC conversion for consumer and industrial electronics.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant (LF) |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Monolithic Power Systems (MPS) |
| Topology | Current-Mode PWM Offline Regulator |
| Integrated MOSFET | 700V |
| Input Voltage | 85VAC ~ 265VAC Universal Input |
| Package Type | SOIC-16 (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- AC-DC Power Adapters & Chargers
- Set-Top Box & Monitor Auxiliary Power
- Low-Power Industrial Power Supplies
- Home Appliance Control Power
- LED Driver & Lighting Power
- Standby Power for Consumer Electronics
- Universal Input Offline Power Modules
- Battery Charger & Adapter Solutions
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
