MTX2-183+
MTX2-183+

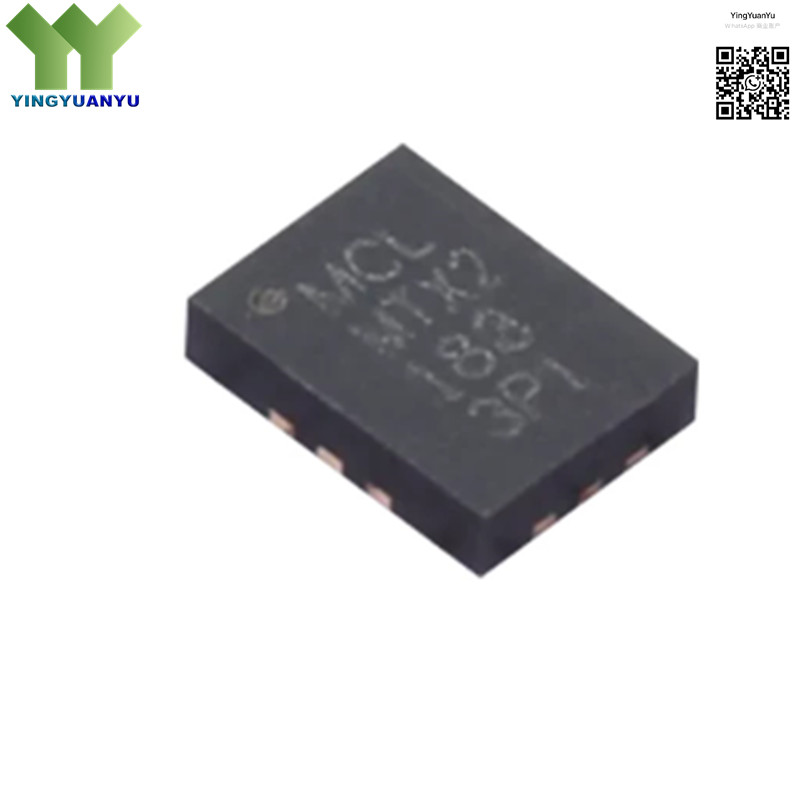

| Part Number | MTX2-183+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Transformers; Wideband RF Transformer |
| Description | 2:1 Wideband RF Transformer balun, 50Ω to 12.5Ω, 2GHz to 18GHz, RoHS Compliant, QFN-12(3×4) Package |
Product Overview
The MTX2-183+ is a high-performance wideband 2:1 RF transformer designed for impedance matching, signal isolation, power coupling and signal transmission in RF, microwave and communication systems. It provides stable impedance conversion with low insertion loss, high return loss, excellent linearity and consistent performance across a wide frequency range from 2GHz to 18GHz. The device features a compact surface-mount package, rugged construction, and high reliability for industrial, test, broadband and communication applications. Fully RoHS-compliant and optimized for high-frequency PCB integration, it delivers reliable RF signal transformation for professional electronic systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Package / Case | QFN-12(3×4) |
| Mounting Type | Surface Mount (SMD) |
| Turns Ratio | 2:1 |
| Frequency Range | 2GHz to 18GHz |
| Impedance | 50Ω to 12.5Ω |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- RF Impedance Matching Networks
- Broadband Communication Systems
- Signal Isolation & Power Coupling Circuits
- RF Transmitter & Receiver Modules
- Test & Measurement Instrumentation
- RF Power Amplifier Circuits
- Industrial Control & Sensor Interfaces
- High-Frequency PCB Signal Conversion
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
