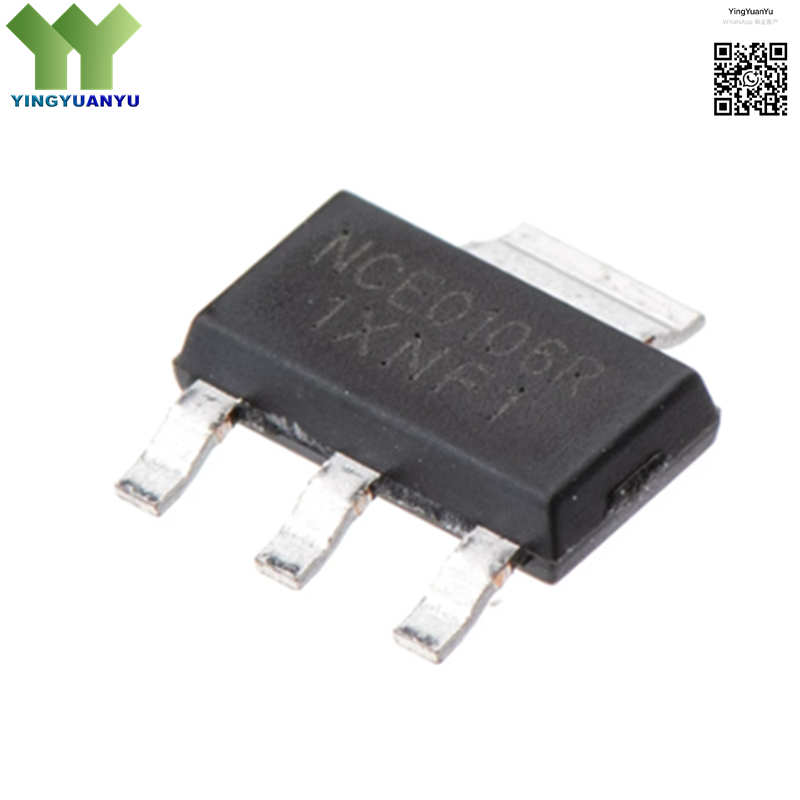

NCE0106R
NCE0106R
| Part Number | NCE0106R |
| Manufacturer | NCE Electronics |
| Category | Semiconductors > Transistors > MOSFET |
| Description | N-Channel Power MOSFET, 100V, 9A,140 mΩ, Ultra Low On-Resistance,SOT-223-3L SMD Package |
Product Overview
The NCE0106R is a surface-mount N-channel power MOSFET produced by NCE Electronics with advanced trench technology. It features ultra-low drain-source on-resistance to reduce power dissipation and boost conversion efficiency, together with fast switching performance and reliable thermal performance. Compact SMD package is designed for automatic SMT mounting to save PCB layout space. Suitable for ultra-low voltage high-current scenarios, this cost-effective component is widely used in lithium battery protection, quick charger and DC-DC switching power supply circuits.
Key Specifications
| Brand | NCE |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | SOT-223-3L |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | NCE0106R |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Id) | 9 A |
| Drain-Source On Resistance (Rds(on)) | 140 mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Operating Temperature | -55°C to 175°C |
Typical Applications
- Lithium Battery Protection Circuits
- Mobile Fast Charger Control Boards
- Low Voltage DC-DC Step Down Converters
- Power Bank Management Modules
- High Current Load Switching Circuits
- Smart Wearable Power Supplies
- IoT Miniature Power Modules
- Small DC Motor Driver Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is NCE0106R RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts SOT-223-3L package and surface mount type for PCB assembly.
Q4: What is the typical Rds(on) value of NCE0106R?
A: Its typical drain-source on resistance is less than 140 mΩ at specified test condition.
