OV02710-A68A-1E
OV02710-A68A-1E
| Part Number | OV02710-A68A-1E |
|---|---|
| Manufacturer | OmniVision Technologies |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1080p HD Color CMOS Image Sensor, 1920 x 1080 Resolution, OmniPixel3‑HS Technology, 68‑Pin CSP3 Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview

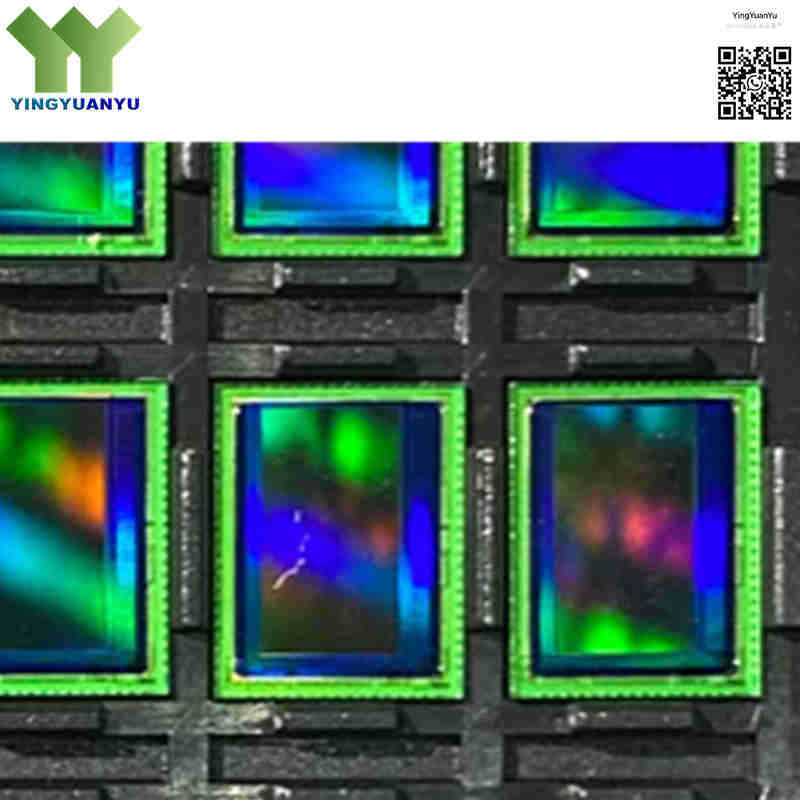

The OV02710‑A68A‑1E is a 1/2.7‑inch 1080P Full‑HD CMOS image sensor adopting OmniPixel3‑HS™ technology. It outputs 1920×1080@30fps video, supports 10‑bit RAW RGB via DVP parallel or 2‑lane MIPI interface. With 3 µm pixel, 3700 mV/lux‑sec sensitivity, 40 dB SNR and 69 dB dynamic range, this rolling‑shutter sensor comes in 68‑pin CSP3 package for webcams, security cameras and embedded vision devices.
Core Advantages
Excellent Low‑Light Performance
OmniPixel3‑HS™ pixel delivers 3700 mV/lux‑sec sensitivity, capable of clear imaging under low‑light ambient conditions.
Native Full‑HD Video
Native 1920×1080@30fps; also supports 720p@60fps and VGA@60fps for flexible video capture.
Dual‑Interface Support
10‑bit DVP parallel and 2‑lane MIPI interfaces, with programmable exposure, gain and image windowing settings.
Small Form‑Factor & Low‑Power
Compact 68‑pin CSP3 chip‑scale package, optimized power consumption for battery‑powered IoT and portable cameras.
Key Specifications
| Brand | OmniVision Technologies |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |

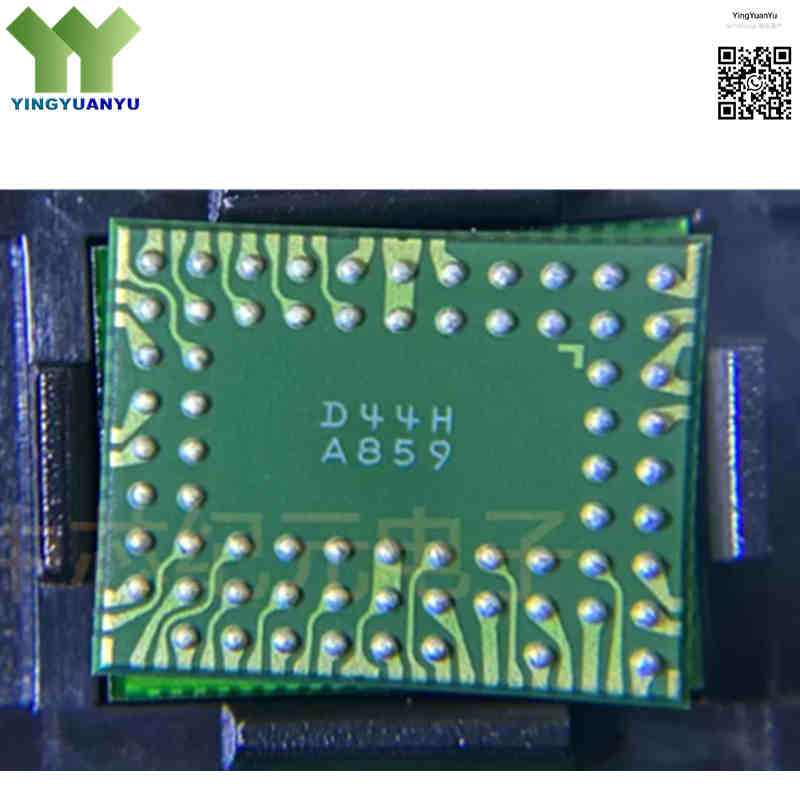

| Package / Case | 68‑Pin CSP3 |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | OV02710 |
| Active Array Size | 1920 × 1080 (Full HD 1080p) |
| Pixel Size | 3.0 µm × 3.0 µm |
| Optical Format | 1/2.7 Inch |
| Maximum Frame Rate | 30 fps @ 1080p, 60 fps @ 720p, 60 fps @ VGA |
| Output Formats | 10‑bit RAW RGB / DVP Parallel / 2‑Lane MIPI |
| Power Supply Voltages | Analog: 3.0V‑3.6V(Typ 3.3V) / Core:1.425V‑1.575V(Typ1.5V) / I/O:1.7V‑3.0V(Typ1.8V) |
| Power Consumption | Active: 150 mW Typical @1080p30 / Standby Power‑down:70 µA |
| Junction Temperature | ‑30°C ~ +85°C |
| Recommended Stable Ambient Temperature | 0°C ~ +65°C |
| S/N Ratio | 40 dB (Typical) |
| Peak Dynamic Range | 69 dB |
| Sensitivity | 3700 mV/lux‑sec |
| Shutter Type | Rolling Shutter |
| Input Clock Frequency | 6 MHz ~ 27 MHz |
| Chief Ray Angle (CRA) | 23.6° |
Typical Applications
- IP Security Cameras and Closed‑Circuit Television (CCTV) Systems
- Notebook & PC HD Webcams, Video Conferencing Devices
- Automotive Dashcams and Driving Video Recorders (DVRs)
- Smart Home Security, Video Doorbells, IoT Camera Modules
- Portable Video Recorders, Industrial Embedded Vision Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What resolution and frame rate does OV02710‑A68A‑1E support?
A: Native 1080P (1920×1080) @30fps; also supports 720P@60fps and VGA@60fps.
Q2: What output interfaces are available for OV02710‑A68A‑1E?
A: Dual interfaces: 10‑bit DVP parallel and 2‑lane MIPI serial output.
Q3: What package is OV02710‑A68A‑1E?
A: 68‑pin CSP3 chip‑scale surface‑mount package.
Q4: What is the difference between junction temperature and ambient temperature?
A:‑30℃ ~ +85℃ is chip junction limit. Recommended stable ambient temperature: 0℃ ~ +65℃. Operating beyond ambient range will affect image quality and service life.
Q5: What does suffix‑1E mean? Difference between OV02710‑A68A and OV02710‑A68A‑1E?
A:‑1E denotes electrical bin, interface configuration and tape‑and‑reel packaging. OV02710‑A68A is bare die base part number. They are not pin‑to‑pin compatible; register validation is required before usage.
Q6: Are there drop‑in compatible alternatives for OV02710‑A68A‑1E?
A: OV2718 and OV2735 are OmniVision 2MP alternatives, but no direct drop‑in replacement. Modifications for hardware footprint, power sequence and firmware driver are mandatory for migration.
Q7: How to get datasheet, register info and volume pricing?
A: Submit quick inquiry for datasheet, register specifications, stock confirmation and bulk quotation.
