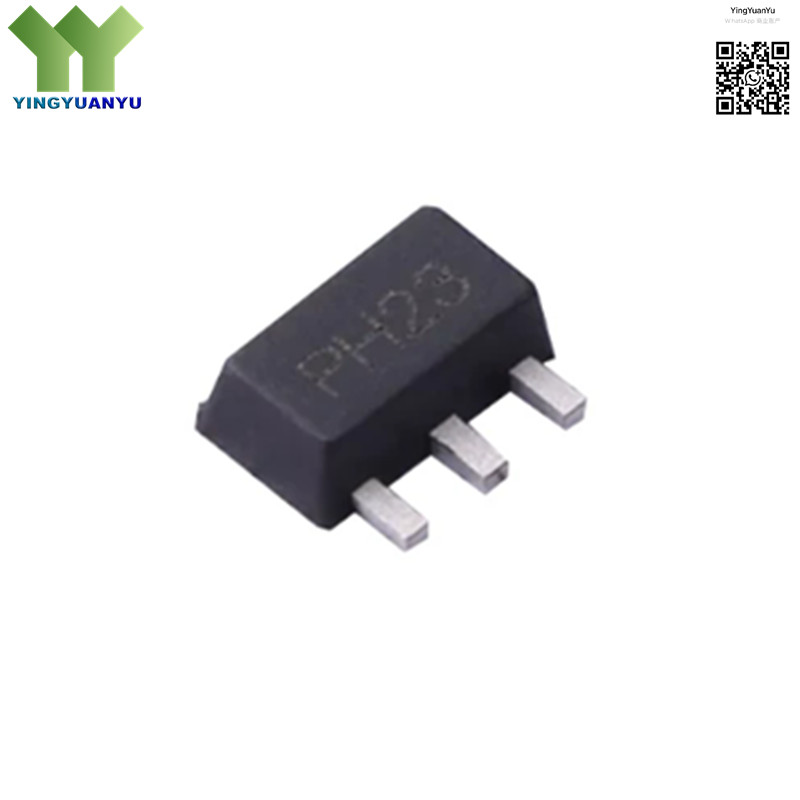

PHA-13LN+
PHA-13LN+
| Part Number | PHA-13LN+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Amplifiers; Low Noise Amplifiers (LNA) |
| Description | Low Noise Amplifier, 50 – 3000 MHz, 50Ω, 13dB Gain,5V,3V Low Noise Figure, SOT-89-4 Package |
Product Overview
The PHA-13LN+ is a high-performance broadband low noise amplifier designed for RF receiver frontends, wireless communication systems, and test & measurement equipment. It operates from 50 MHz to 3000 MHz with stable high gain, ultra-low noise figure, excellent input/output matching, and high linearity. Utilizing advanced semiconductor technology and surface-mount construction, this amplifier delivers reliable performance, wide bandwidth, and consistent electrical characteristics across extreme temperature ranges. With 50Ω impedance and compact SMD packaging, it enables seamless integration into high-density RF circuits and portable communication devices.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Frequency Range | 50 – 3000 MHz |
| Small Signal Gain | 13 dB Typical |
| Noise Figure | 1.2 dB Typical |
| Impedance | 50Ω |
| Package Type | SOT-89-4 |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Receiver Front-End Low Noise Amplification
- Broadband RF & Wireless Communication Systems
- 2.4GHz ISM Band Transceivers
- Test & Measurement Instrumentation
- RF Signal Booster & Gain Stages
- Sensor & Portable RF Devices
- High-Density RF PCB Designs
- Industrial & Commercial RF Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
