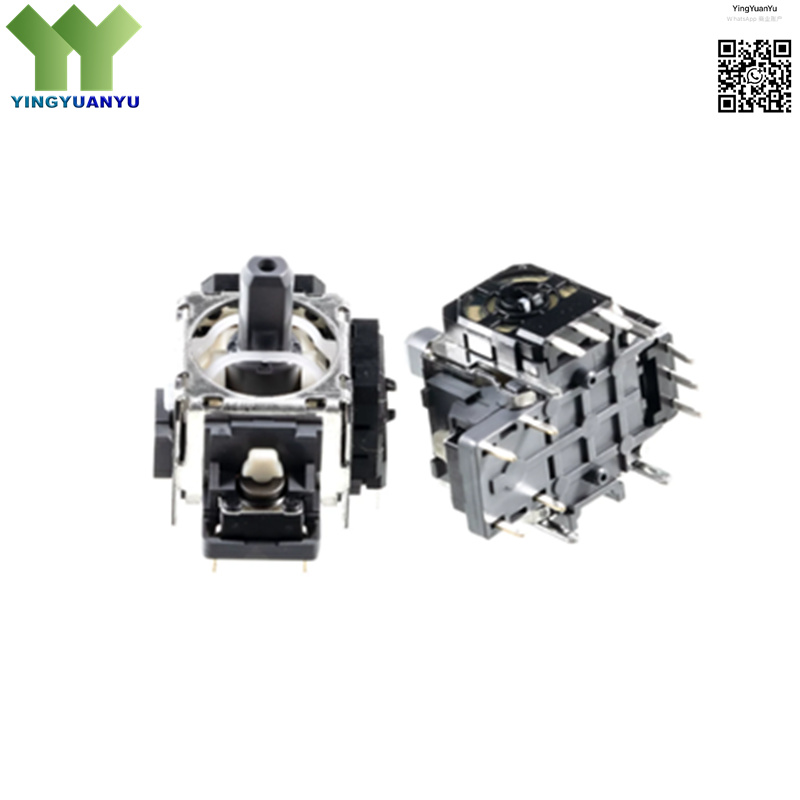

RKJXV122400R
| Part Number | RKJXV122400R |
| Manufacturer | ALPS Alpine |
| Category | Passive Components > Resistors > Variable Resistors / Potentiometers |
| Description | ALPS RKJXV122400R 3D Joystick Potentiometer, 10kΩ ±5%, Multi-Axis Variable Resistor for Game Controllers and Industrial Joysticks |
Product Overview
The RKJXV122400R is a multi-axis joystick potentiometer from ALPS Alpine, designed for precise position sensing and control in game controllers, industrial joysticks, and remote control systems. Featuring a self-centering lever mechanism, this dual-axis variable resistor provides linear resistance output proportional to joystick movement, with a rated resistance of 10kΩ and ±5% tolerance. It offers reliable operation with long mechanical life, smooth movement feel, and built-in return springs for automatic centering, making it ideal for applications requiring accurate analog control.
Key Specifications
| Brand | ALPS Alpine |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Resistance Value | 10 kΩ |
| Tolerance | ±5% |
| Power Rating | 125 mW |
| Rated Voltage | 5V DC / 50V AC |
| Mounting Type | Through-Hole (TH) |
| Package / Case | 14-Pin DIP Package |
| Surface Marking / Silkscreen | RKJXV122400R, ALPS Logo |
| Operating Temperature | -10°C to +70°C |
| Mechanical Life | 1,000,000 Cycles |
| Movement Angle | ±23° (Max) |
Typical Applications
- Game Controllers & Gaming Consoles
- Industrial Joysticks & Control Panels
- Remote Control Systems (Drones, RC Toys)
- Medical Equipment & Rehabilitation Devices
- Automotive Electronic Control Systems
- Robotics & Motion Control Systems
Order & Shipping Info
- Minimum Order Quantity (MOQ): 1 Piece
- Shipping Time: Shipped within 1-2 business days
- Delivery Time: 3-7 working days worldwide
- Shipping Methods: DHL, UPS, FedEx, EMS
- Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
