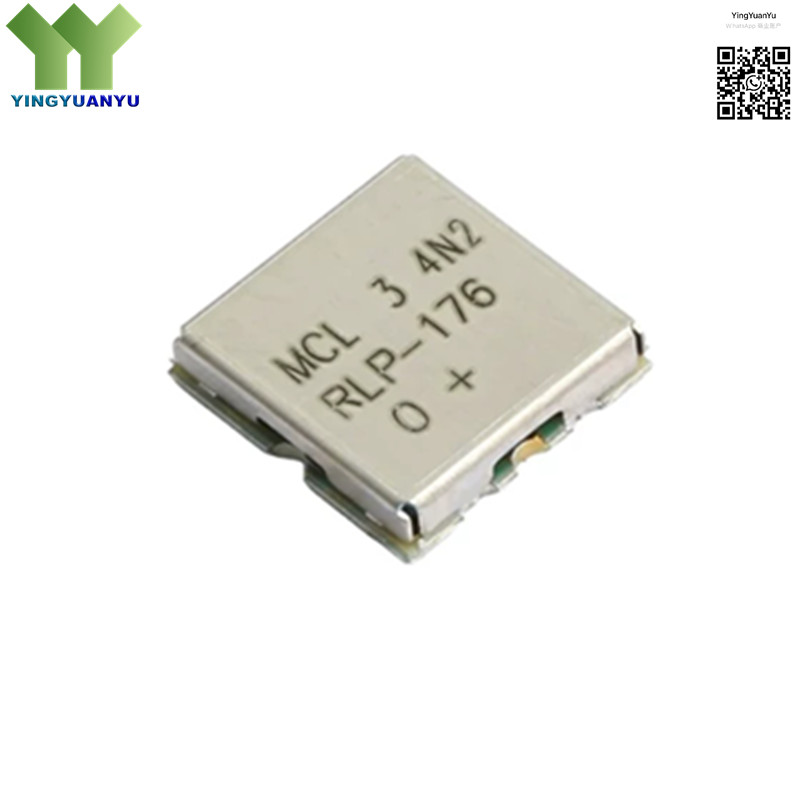

RLP-176+
RLP-176+
| Part Number | RLP-176+ |
| Manufacturer | Mini-Circuits |
| Category | RF Filters; Low Pass Filter |
| Description | Low Pass RF Filter, DC to 176 MHz, 50Ω, SMD-8P,8.9×8.9mm Package |
Product Overview
The RLP-176+ is a high-performance, ultra-small low pass RF filter from Mini-Circuits, designed to pass signals from DC to 176 MHz while effectively rejecting higher frequency components. It offers low insertion loss in the passband, high attenuation in the stopband, and excellent VSWR performance for reliable signal integrity. Housed in a compact surface-mount package, this filter is ideal for high-density board applications requiring excellent performance and minimal footprint. It is fully RoHS compliant and suitable for a wide range of commercial and industrial RF systems.
Key Specifications
| Brand | Mini-Circuits |
| RoHS Compliance | RoHS Compliant |
| EDA/CAD Models | Available |
| Warranty | 1 Year |
| Package / Case | SMD-8P,8.9×8.9mm |
| Mounting Type | Surface Mount |
| Frequency Range | DC to 176 MHz |
| Impedance | 50 Ω |
| Insertion Loss (Typical) | ≤ 1.0 dB |
| Attenuation (Stopband) | ≥ 20 dB at 350 MHz |
Typical Applications
- Wireless Communication Systems
- RF Receiver Front-Ends
- Test and Measurement Equipment
- Signal Processing Circuits
- General Purpose Low Pass Filtering
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
