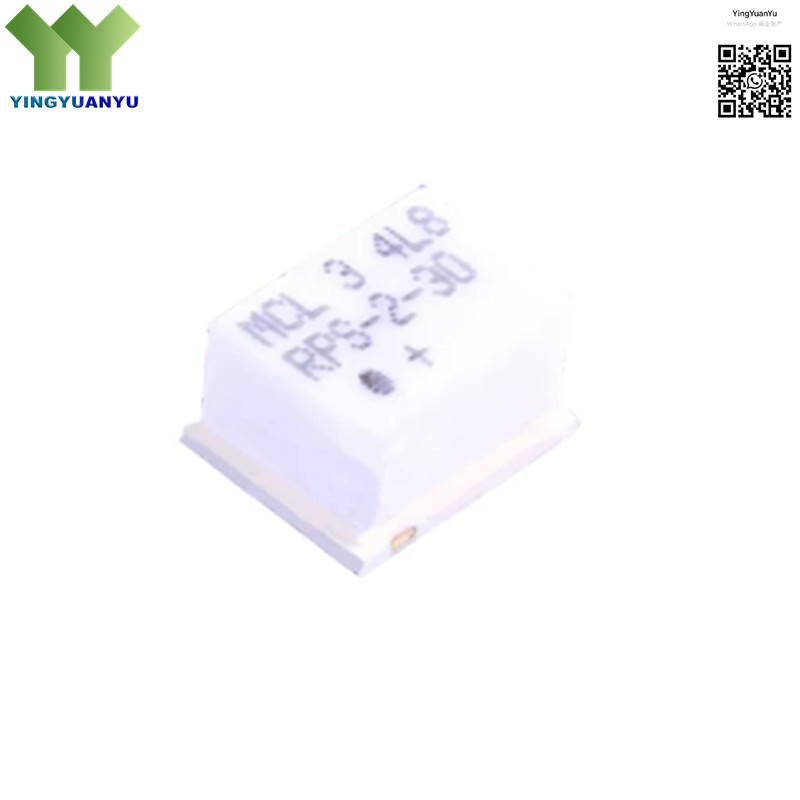

RPS-2-30+
RPS-2-30+
Basic Information
| Part Number | RPS-2-30+ |
| Manufacturer | Mini-Circuits |
| Category | RF Power Splitters / Combiners, 2-Way Power Splitter |
| Description | 2-Way RF Power Splitter / Combiner, 50Ω, DC to 3000 MHz, SMD-6P,7.9×6.4mm Package |
Product Overview
The RPS-2-30+ is a high-performance 2-way RF power splitter/combiner manufactured by Mini-Circuits, optimized for broadband operation from DC to 3000 MHz. This compact surface-mount device provides excellent insertion loss, high isolation, and consistent 50Ω impedance matching across the entire frequency range. Engineered with robust construction and reliable performance, it supports seamless integration into high-frequency communication, test, and wireless systems, delivering stable signal distribution and combining capabilities for commercial and industrial RF applications.
Key Specifications
| Brand | Mini-Circuits |
| RoHS | Compliant |
| EDA / CAD | Available Models & Symbols |
| Warranty | Standard Manufacturer Warranty |
| Package / Case | SMD-6P,7.9×6.4mm |
| Mounting Type | Surface Mount, SMD |
| Configuration | 2-Way Power Splitter / Combiner |
| Frequency Range | DC to 3000 MHz |
| Impedance | 50 Ohms |
| Package Style | SMD Module |
Typical Applications
- Broadband Wireless Communication Systems
- RF Signal Distribution and Combining
- Test and Measurement Equipment
- Cellular and Mobile Radio Systems
- Antenna Arrays
- Microwave Circuits
- Consumer RF Electronics
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
