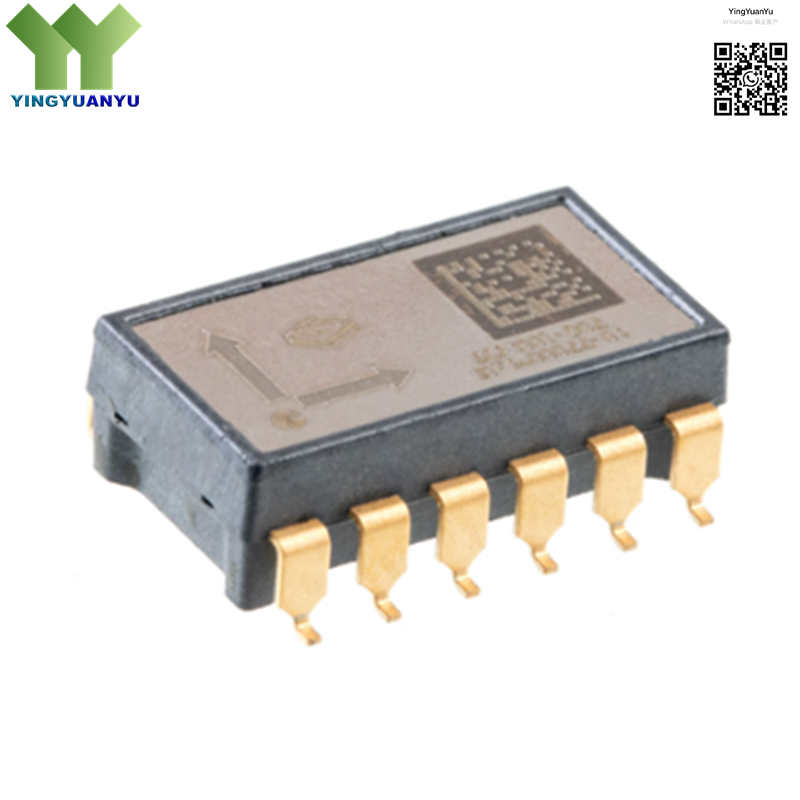

SCA100T-D02
SCA100T-D02
| Part Number | SCA100T-D02 |
| Manufacturer | Murata |
| Category | Sensors > Accelerometers > Single Axis High Precision Inclinometer |
| Description | Single Axis MEMS Inclination Sensor, Analog Output, ±90 Degree Tilt Measurement,SMD-12 Package |
Product Overview
The SCA100T-D02 is a high-stability single-axis MEMS inclinometer from Murata engineered for industrial tilt monitoring applications. Based on robust bulk silicon MEMS technology, this component delivers superior temperature stability, low zero drift and strong anti-vibration capability under harsh field conditions. It outputs proportional analog voltage corresponding to tilt angle without extra signal amplification, simplifying peripheral circuit design. Fully sealed SMD metal package ensures excellent environmental adaptability, widely used in construction machinery leveling, civil engineering structure monitoring and precision industrial positioning systems.
Key Specifications
| Brand | Murata |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | SMD-12 |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | SCA100T-D02 |
| Measurement Axis | Single Axis |
| Tilt Range | ±90° |
| Output Type | Analog Voltage |
| Supply Voltage | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 125°C |
Typical Applications
- Excavator & Crane Level Monitoring Systems
- Bridge and Dam Structural Deformation Detection
- Automatic Industrial Platform Level Control
- Road Paving Machinery Attitude Measurement
- Railway Track Settlement Monitoring Equipment
- Precision Optical Instrument Level Compensation
- Wind Turbine Tower Inclination Detection
- Geotechnical Engineering Landslide Monitoring Units
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is SCA100T-D02 RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts hermetically sealed metal SMD-12 package and surface mount type for PCB assembly.
Q4: What is the tilt measurement range of this MEMS tilt sensor?
A: The full-scale tilt measuring range is ±90°.
