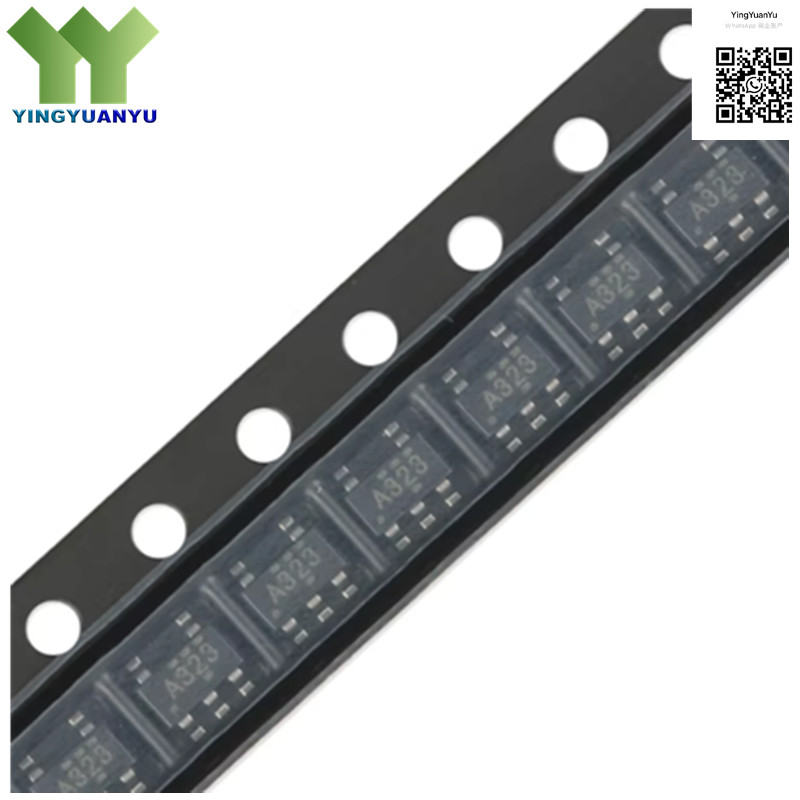

SN74AHC1G32DBVR
SN74AHC1G32DBVR
| Part Number | SN74AHC1G32DBVR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Logic ICs; Single 2-Input OR Gates |
| Description | Single 2-Input Positive OR Gate, High-Speed AHC Logic, 2V-5.5V, SOT-23-5 Package |
Product Overview
The SN74AHC1G32DBVR is a single 2-input positive OR gate designed for high-speed, low-power digital logic applications. It operates over a wide voltage range of 2V to 5.5V, offering excellent noise immunity, fast propagation delay, and compatibility with standard AHC and TTL logic levels. The device is optimized for compact, space-constrained designs and provides reliable logic operation in consumer electronics, industrial controls, and embedded systems. Housed in a tiny SOT-23-5 surface-mount package, it delivers efficient single-gate logic functionality with minimal board space usage.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Logic Function | Single 2-Input OR Gate |
| Supply Voltage | 2V to 5.5V |
| Logic Family | AHC Advanced CMOS |
| Package Type | SOT-23-5 |
| Compatibility | TTL Compatible Inputs |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- General-Purpose Digital Logic Circuits
- Portable Electronics & Wearables
- IoT Sensor Nodes
- Microcontroller Interface Logic
- Industrial Control Systems
- Consumer Electronics
- Compact Embedded Systems
- High-Speed Signal Logic
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
