TS3USB30ERSWR
TS3USB30ERSWR
| Part Number | TS3USB30ERSWR |
| Manufacturer | Texas Instruments(TI) |
| Category | Interface IC > USB Switch IC > High-Speed USB Signal Multiplexer |
| Description | Single-Dual Channel High-Speed USB 2.0 Signal Switch IC, Low On-Resistance for Portable Device USB Routing,UQFN-10(1.4×1.8) Package |
Product Overview
The TS3USB30ERSWR is a high-performance high-speed USB signal switching IC designed by Texas Instruments, optimized for USB2.0 High-Speed data transmission up to 480Mbps. This analog multiplexer features ultra-low channel on-resistance and minimal signal distortion to preserve intact differential USB signal quality during path switching. Controlled via single logic select pin, it realizes one-to-two or two-to-one USB channel switching with low power consumption, ideal for battery-powered portable electronics. Tiny UQFN surface-mount package supports high-density PCB layout and automatic SMT production, widely applied in smartphones, tablets, docking stations and multi-port peripheral equipment for USB signal route management.
Key Specifications
| Brand | Texas Instruments |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | UQFN-10(1.4×1.8) Package |
| Mounting Type | Surface Mount |

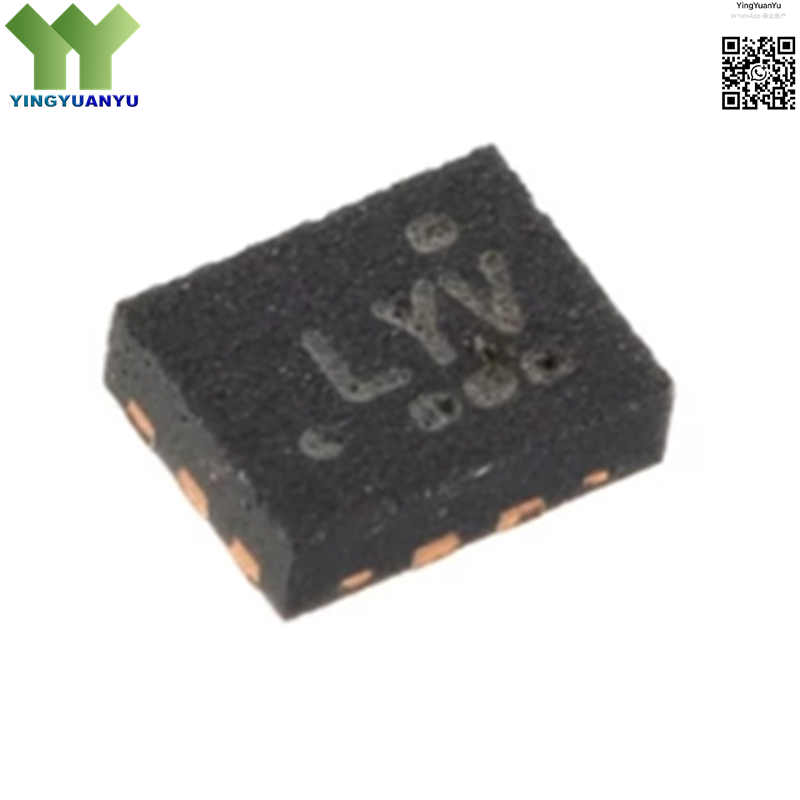

| Surface Marking / Silkscreen | LYV Marking |
| Supported Rate | USB2.0 High Speed up to 480Mbps |
| Supply Voltage | 3V~4.3V Low Voltage Operation |
| Operating Temperature | -40°C ~ 85°C |
| On Resistance | Typical 10Ω Low Channel On-Resistance |
| Channel Configuration | 1-to-2 / 2-to-1 Differential USB Signal Multiplexing |
| Control Logic | Single Pin Logic Select Control |
| Input Capacitance | Low Input Capacitance to Minimize Signal Distortion |
Typical Applications
- Smartphone & Tablet USB OTG Signal Switch Circuit
- Laptop Docking Station Multi-Port USB Channel Selection Module
- Multi-function USB Hub Internal Signal Routing Control Board
- Portable Bluetooth Audio Device USB Data Switch Design
- Industrial Handheld Instrument USB Interface Multiplex Unit
- Car Multimedia Host USB Port Expanding Control Circuit
- Digital Camera & Camcorder Shared USB Channel Board
- Consumer Mini Electronics Shared USB Data Path Components
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is TS3USB30ERSWR RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts UQFN-10(1.4×1.8) package and surface mount type for compact PCB assembly.
Q4: What channel mode does this multiplexer support?
A: It realizes 1-to-2 or 2-to-1 differential USB signal multiplexing controlled by single logic pin.
