ADT2-1T-1P+
ADT2-1T-1P+
| Part Number | ADT2-1T-1P+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Transformers; Wideband Balun Transformer |

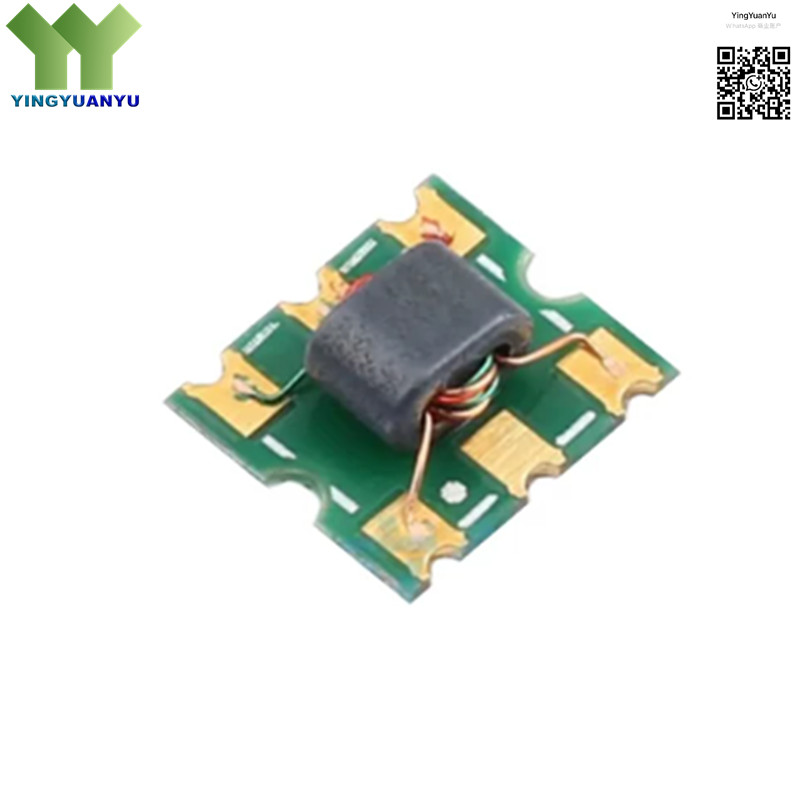

| Description | 1:1 Wideband Balun Transformer, 50Ω, 8MHz~600MHz, RoHS Compliant, SMD-6P,7.9×5.6mm Package |
Product Overview
The ADT2-1T-1P+ is a high-performance wideband 1:1 balun transformer designed for balanced-unbalanced signal conversion, impedance matching, and signal isolation in RF and communication systems. It provides excellent insertion loss, high return loss, and stable electrical performance across a wide frequency range from 8MHz~600MHz. The device features a compact surface-mount package, rugged construction, and high reliability for industrial, test, and broadband applications. Fully RoHS-compliant and optimized for high-frequency PCB integration, it delivers consistent and reliable RF signal conversion for professional electronic systems.
| Key Specifications | |
|---|---|
| Brand | Mini-Circuits |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SMD-6P,7.9×5.6mm |
| Mounting Type | Surface Mount (SMD) |
| Turns Ratio | 1:1 |
| Frequency Range | 8MHz~600MHz |
| Impedance | 50Ω |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Balanced-Unbalanced Signal Conversion
- RF Impedance Matching Networks
- Broadband Communication Systems
- Signal Isolation & Coupling Circuits
- RF Transmitter & Receiver Modules
- Test & Measurement Equipment
- Industrial Control & Sensor Interfaces
- High-Frequency PCB Balun Solutions
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
