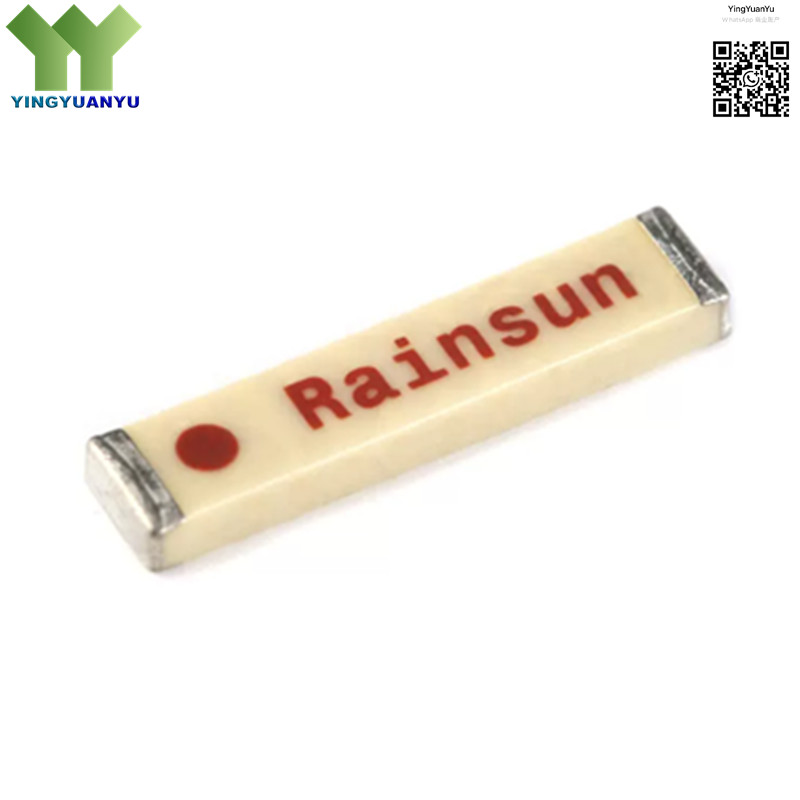

AN9520-245
| Part Number | AN9520-245 |
| Manufacturer | Rainsun |
| Category | RF Antennas; 2.4GHz Ceramic SMD Antenna |
| Description | 2.4GHz Ceramic SMD Antenna, 2.45GHz Center Frequency, 1.5dBi Gain, 9.5×2.1mm Package for WiFi/Bluetooth Applications |
Product Overview
The AN9520-245 is a compact, high-performance 2.4GHz ceramic SMD antenna designed for reliable wireless connectivity in WiFi, Bluetooth, Zigbee, and other 2.4GHz ISM band applications. With a center frequency of 2.45GHz, 200MHz bandwidth, and 1.5dBi gain, this antenna delivers stable RF performance in a small 9.5×2.1mm surface-mount package. It is optimized for portable electronics, IoT devices, wireless modules, and low-power embedded systems requiring efficient 2.4GHz wireless communication.
Key Specifications
| Brand | Rainsun |
| RoHS Status | RoHS Compliant |
| EDA/CAD Model | Available Upon Request |
| Warranty | 1 Year |
| Package / Case | SMD 9.5×2.1mm |
| Mounting Type | Surface Mount |
| Center Frequency | 2.45GHz |
| Bandwidth | 200MHz |
| Gain | 1.5dBi |
| Frequency Range | 2.4GHz – 2.5GHz |
Typical Applications
- WiFi and Bluetooth Modules
- IoT and Smart Home Devices
- Wireless Sensor Nodes
- Portable Consumer Electronics
- Zigbee and Thread Networks
- Low-Power Embedded Systems
Order & Shipping Info
- Minimum Order Quantity (MOQ): 1 Piece
- Shipping Time: Shipped within 1-2 business days
- Delivery Time: 3-7 working days worldwide
- Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
