IMX377CQT-C
IMX377CQT-C
| Part Number | IMX377CQT-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.3″ 12.35 MP High‑Speed Color CMOS Image Sensor, Exmor R™ Back‑Illuminated Technology, 4K60p Video Support, 85‑Pin LGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX377CQT‑C is Sony 1/2.3‑inch 12.35MP BSI CMOS image sensor. It features high‑sensitivity low‑dark‑current performance, 10/12‑bit on‑chip ADC and MIPI CSI‑2 output. Supports full‑pixel 35fps@12‑bit, 4K@60fps video, widely used for action cameras, UAV payloads and 4K vision devices.
Core Advantages
Exmor R™ BSI Architecture
Back‑illuminated pixel design boosts light‑gathering efficiency for superior low‑light imaging and low noise.
4K@60fps High‑Speed Output
Full‑pixel 35fps@12‑bit / 40fps@10‑bit; cropped mode supports 1080p@120fps,720p@240fps slow‑motion recording.
Multi‑Rail Low‑Power Supply
Three‑rail power (Analog 2.8V, Digital 1.2V, I/O 1.8V), ideal for battery‑powered handheld & airborne equipment.
MIPI CSI‑2 Interface
2/4‑lane MIPI D‑PHY output, simplifies PCB layout and reduces EMI for mainstream ISP solutions.
On‑Chip PGA & Electronic Shutter
Built‑in PGA up to +27dB (0.1dB step), rolling shutter, anti‑blooming and arbitrary region cropping function.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 85‑Pin LGA Package |
| Mounting Type | Surface Mount (SMD / SMT) |

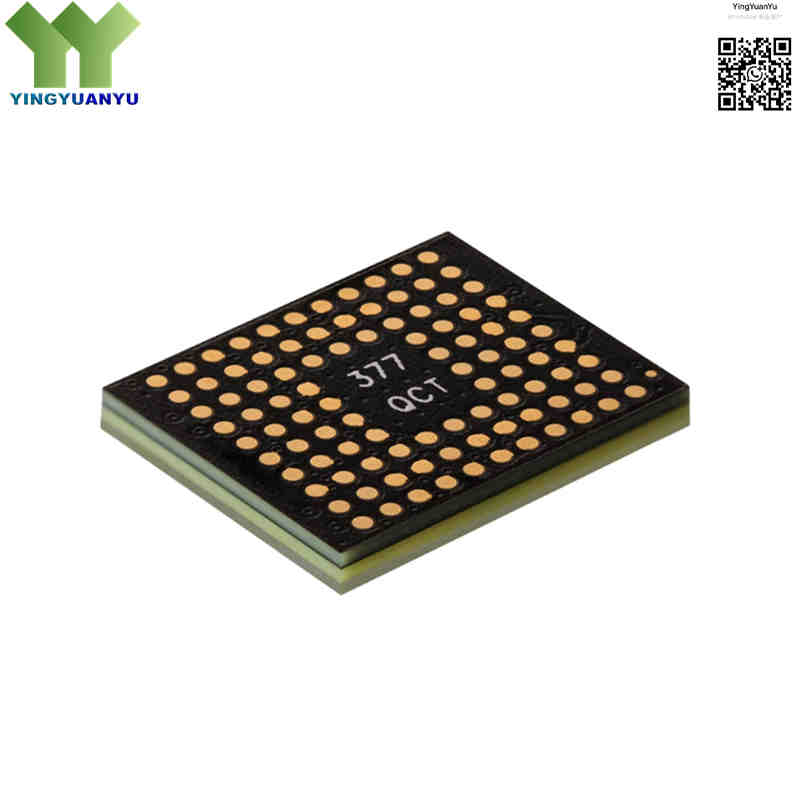

| Surface Marking / Silkscreen | 377CQT Marking |
| Total Pixel Size | 4152 (H) × 3062 (V) approx.12.71 Megapixels |
| Active Array Size | 4056 (H) × 3046 (V) approx. 12.35 Megapixels |
| Recommended Recording Pixels | 4000 (H) × 3000 (V) 12.00 Megapixels |
| Optical Format | Type 1/2.3 inch (Diagonal 7.81 mm) |
| Pixel Size | 1.55 µm (H) × 1.55 µm (V) Square Pixels |
| Chroma | Color (RGB Primary Color Bayer Pattern) |
| Shutter Type | Rolling Electronic Shutter |
| Maximum Frame Rate | 35 fps @ Full‑pixel 12‑bit;40 fps @ Full‑pixel 10‑bit;60 fps @4K UHD 10‑bit;120fps@1080p;240fps@720p(cropped) |
| Output Interface | MIPI CSI‑2 (4‑Lane / 2‑Lane), Sub‑LVDS Not Supported |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter, Built‑in PGA up to +27dB (0.1dB step) |
| Power Supply | Analog 2.8V, Digital 1.2V, I/O Interface 1.8V |
| Input Clock Frequency | 6 MHz ~ 27 MHz |
| Operating Temperature Range | -10°C to +75°C (Performance guaranteed:‑10°C ~ +60°C) |
Typical Applications
- High‑End Action Cameras, 360‑Degree Panoramic Cameras, and Pocket Gimbal Cameras
- Commercial UAV / Drone Camera Payloads and Aerial Surveying Systems
- High‑Speed Industrial Machine Vision, Robotics, and Motion Analysis
- 4K Digital Camcorders, Dashcams, and Wearable Body Cameras
- Intelligent Edge AI Vision Devices and High‑Definition Security Surveillance
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What are the optical and pixel specifications for IMX377CQT‑C?
A: 1/2.3‑inch optical format, total pixels 4152×3062, active array 4056×3046 (12.35MP). Recommended output 4000×3000, 1.55µm BSI Bayer color sensor.
Q2: What frame‑rate modes does IMX377CQT‑C support?
A: 35fps@12‑bit full‑pixel, 40fps@10‑bit full‑pixel, 60fps@4K UHD. Cropped modes:1080p@120fps,720p@240fps, subject to ISP bandwidth.
Q3: What interfaces does IMX377CQT‑C support?
A: 2/4‑lane MIPI CSI‑2 D‑PHY only. Sub‑LVDS is not supported on this variant.
Q4: Difference between IMX377CQT and IMX377CQT‑C?
A: IMX377CQT standard:98‑pin LGA. IMX377CQT‑C custom variant:85‑pin LGA. Optical & pixel specs are same, but pinout and registers differ. Not pin‑to‑pin compatible, PCB and firmware modification required.
Q5: Are there pin‑compatible drop‑in alternatives?
A: No direct pin‑to‑pin replacement. Similar options:IMX378, OV12870. They need PCB redesign and ISP tuning. Send inquiry for project‑matched suggestions.
Q6: What is the PGA gain range?
A: Built‑in PGA max +27dB gain, 0.1dB fine adjustment step for image brightness tuning.
Q7: What is the operating temperature?
A: Operating‑10℃ ~ +75℃; guaranteed performance range‑10℃ ~ +60℃.
Q8: How to get datasheet and register documents?
A: Submit quick inquiry to receive datasheet, pinout, register list and bulk price quotation.
