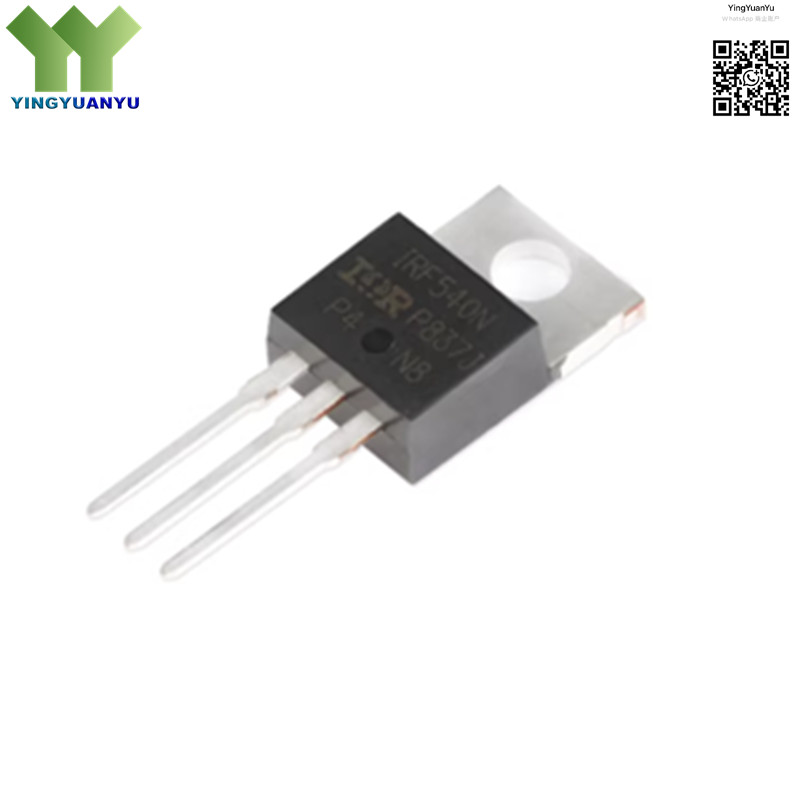

IRF540NPBF
IRF540NPBF
| Part Number | IRF540NPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | MOSFETs; N-Channel Power MOSFETs |
| Description | N-Channel Power MOSFET, 100V, 33A, Low RDS(on), TO-220AB Package |
Product Overview
The IRF540NPBF is a high-performance N-channel power MOSFET designed for high-power switching applications. It offers a voltage rating of 100V, continuous drain current of 33A, and ultra-low on-resistance (RDS(on)) to minimize conduction losses and maximize efficiency. The device features fast switching speed, low gate charge, and robust avalanche energy rating for reliable operation in demanding power electronics systems. Built with advanced silicon technology and RoHS-compliant materials, it delivers excellent thermal performance and long-term reliability. Housed in a standard TO-220AB through-hole package, it is widely used in industrial power conversion, motor control, and power supply designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon / IR |
| Channel Type | N-Channel |
| VDS (Drain-Source Voltage) | 100V |
| ID (Continuous Drain Current) | 33A |
| Package Type | TO-220AB (Through-Hole) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Switch-Mode Power Supplies (SMPS)
- DC-DC Converters & Power Inverters
- Motor Control & Industrial Automation
- Automotive Power Systems
- Battery Management & Charging Systems
- High-Power LED Lighting Drivers
- Solar Inverters & Renewable Energy Systems
- General-Purpose Power Switching Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
