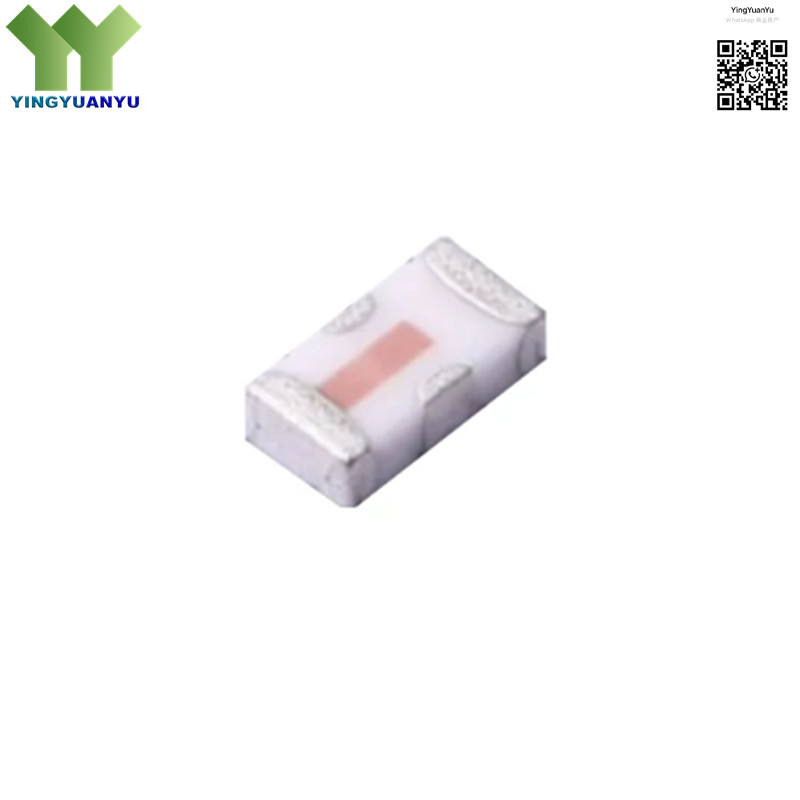

LFCN-490+
LFCN-490+
| Part Number | LFCN-490+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Filters; Low Pass Filter |
| Description | 50Ω Low Pass Filter, 490 MHz Cutoff Frequency, RoHS Compliant, SMD-4P,3.2×1.6mm Package |
Product Overview
The LFCN-490+ is a high-performance 50-ohm low pass RF filter designed for RF communication systems, wireless equipment, and signal conditioning applications. It offers a precise 490 MHz cutoff frequency, low insertion loss, high stopband attenuation, and excellent temperature stability. The device features a compact surface-mount package, wide operating bandwidth, and superior electrical performance for harmonic suppression, noise filtering, and spurious signal reduction in RF and microwave circuits. Fully compliant with RoHS standards, it is optimized for reliable high-frequency PCB integration and industrial-grade applications.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Filter Type | Low Pass Filter |
| Cutoff Frequency | 490 MHz |
| Impedance | 50 Ω |
| Package Type | SMD-4P,3.2×1.6mm |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- RF & Wireless Communication Systems
- Harmonic and Spurious Signal Suppression
- RF Transmitter and Receiver Modules
- Test and Measurement Equipment
- Signal Conditioning and Noise Filtering
- Broadband RF Circuits
- Industrial RF and Microwave Systems
- High-Frequency PCB Signal Filtering
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
