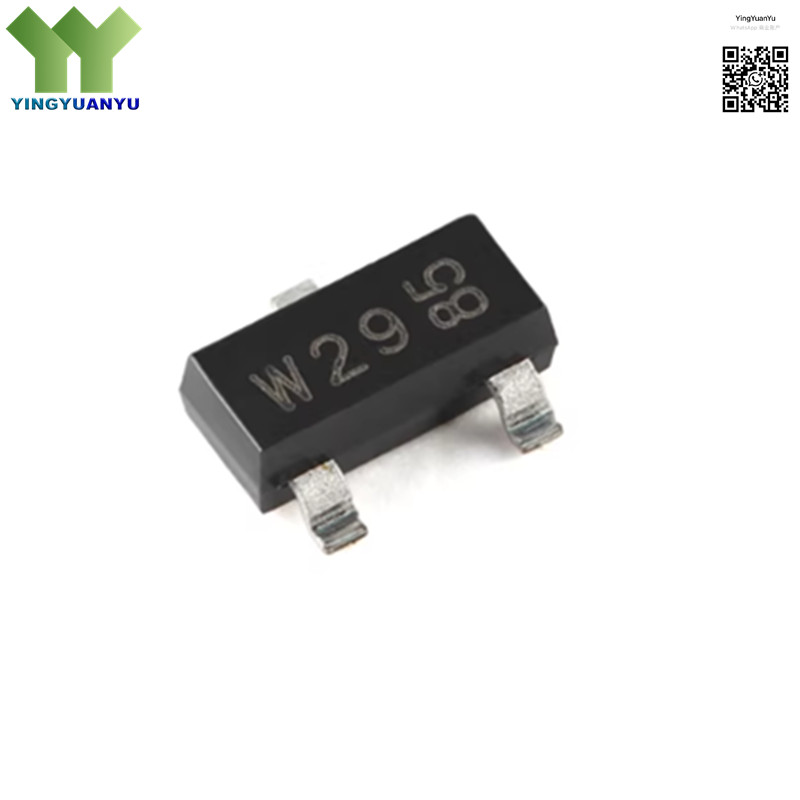

PDTA114YT,215
Basic Information
| Part Number | PDTA114YT,215 |
| Manufacturer | Nexperia |
| Category | Discrete Semiconductor Products > Transistors – Bipolar (BJT) – Single, Pre-Biased |
| Description | TRANS NPN PREBIAS 50V 100MA SOT363 |
Product Overview
The PDTA114YT,215 is a NPN pre-biased bipolar transistor integrated with built-in base and emitter resistors for simplified circuit design. It eliminates the need for external bias components, reduces PCB space, and lowers component count in digital switching applications. The device features high voltage capability, low saturation voltage, and excellent switching performance, housed in a tiny SOT363 (SC-88) surface-mount package ideal for compact consumer electronics, industrial controls, and portable device designs.
Key Specifications
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Symbols, Footprints, 3D Models Available |
| Warranty | Standard Manufacturer Warranty |
| Brand | Nexperia |
| Transistor Type | NPN Pre-Biased |
| Voltage – Vceo | 50V |
| Current – Collector (Ic) | 100mA |
| Resistor Base (R1) | 10kΩ |
| Resistor Emitter (R2) | 10kΩ |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Package / Case | SOT363 (SC-88) |
| Mounting Type | Surface Mount |
Typical Applications
- Digital Switching Circuits
- Level Shifting & Interface Circuits
- Portable Electronic Devices
- Consumer Electronics
- Industrial Control Modules
- LED Drivers & Small Signal Amplification
- Automotive Electronics
- Compact PCB Space-Constrained Designs
