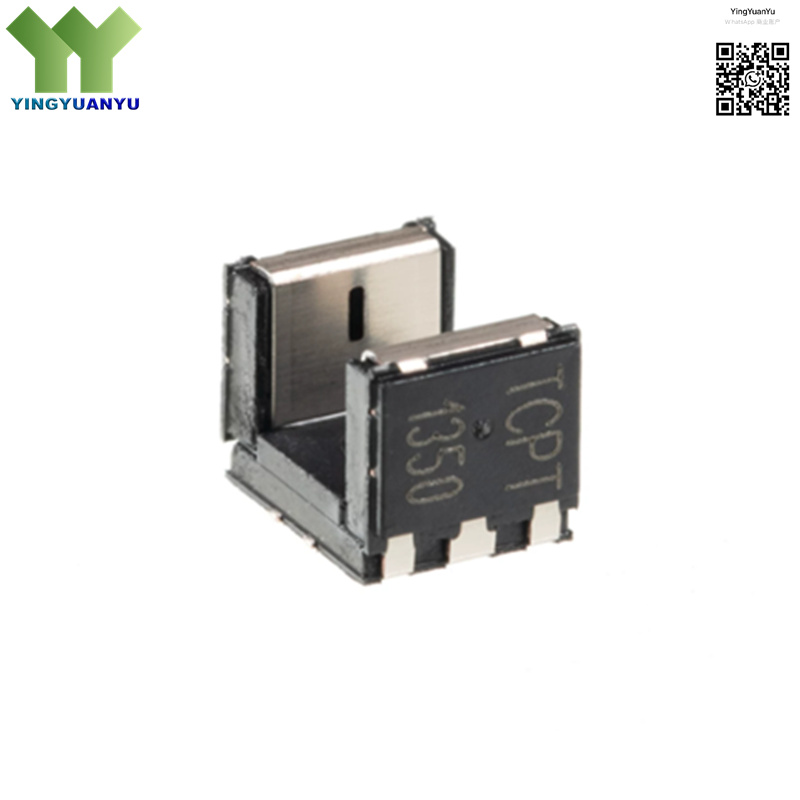

TCPT1350X01
TCPT1350X01
| Part Number | TCPT1350X01 |
|---|---|
| Manufacturer | Vishay Semiconductors |
| Category | Sensors, Transducers; Optical Sensors; Photointerrupters – Slot Type – Transistor Output |
| Description | Transmissive Photo Interrupter, 3mm Slot Gap, 940nm Infrared Emitter, Phototransistor Output, SMD-4P Package, AEC-Q101 Qualified |
Product Overview
The TCPT1350X01 is a compact slotted optical interrupter integrated with infrared emitter and phototransistor receiver. It delivers reliable non-contact detection, fast response speed and stable electrical performance. Featuring 3mm slot width and good ambient light suppression, this isolated sensor effectively detects object passing, position status and rotating speed, widely applied in automatic control, office equipment and household electronic devices.
| Key Specifications | |
|---|---|
| Brand | Vishay Semiconductors |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SMD-4P Package |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | TCPT1350 |
| Slot Width | 3 mm |
| Infrared Wavelength | 940 nm |
| Output Mode | Phototransistor Output |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Position and Limit Position Detection
- Printer and Copier Paper Monitoring
- Speed and Rotation Count Detection
- Household Appliance Control System
- Industrial Automatic Detection Equipment
- Non-contact Trigger Switch Module
- Smart Office Automation Devices
- Robotics Mechanical Position Sensing
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
